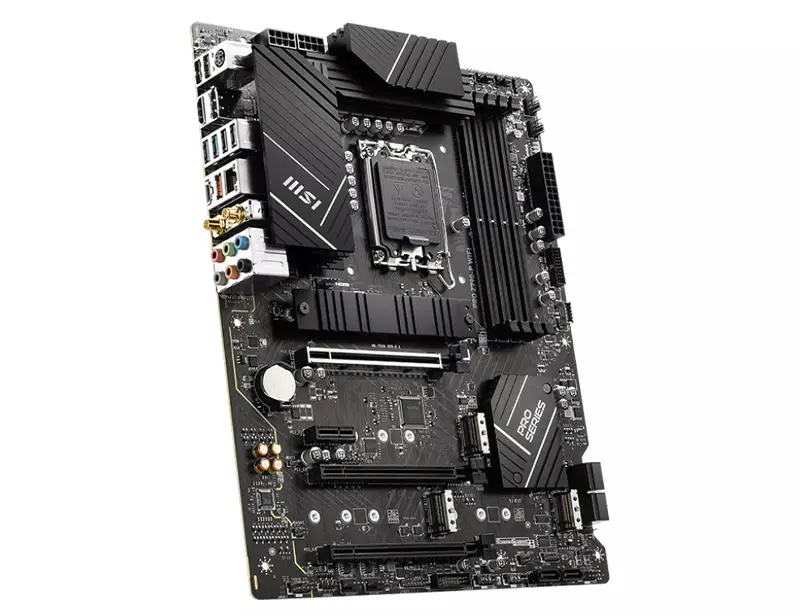

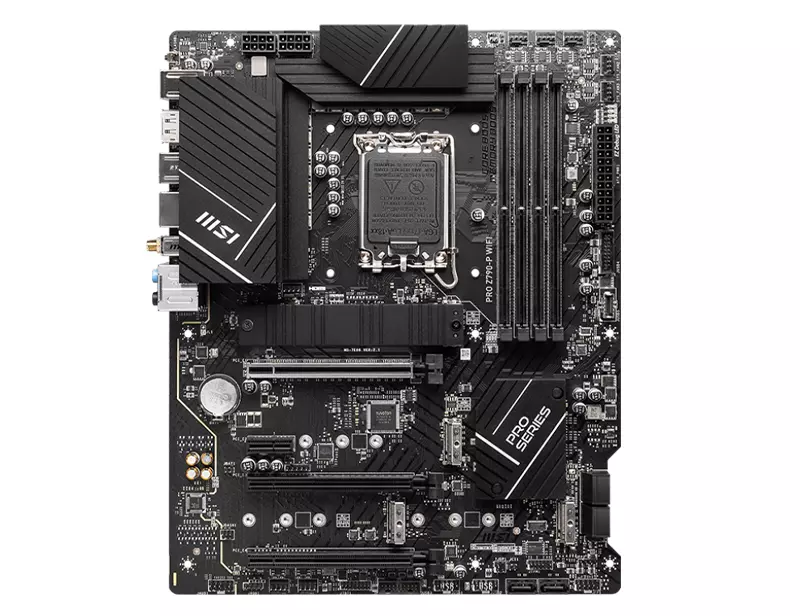

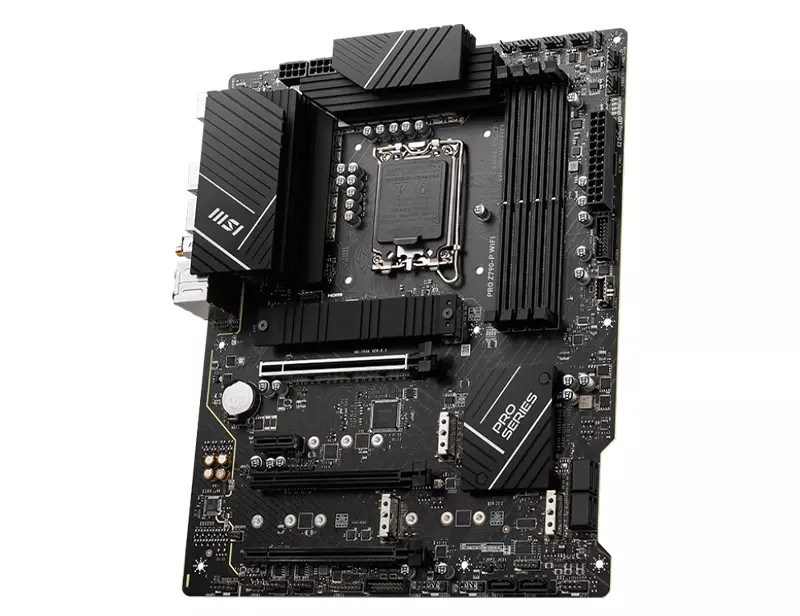

MSI PRO Z790-P WIFI DDR5 13th Gen ATX Motherboard (Intel)
- 12th/13th Gen Intel Core, Pentium Gold, and Celeron processors
- LGA 1700 socket
- DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Chat Through:
Original price was: 29,200৳ .26,900৳ Current price is: 26,900৳ .
Description
MSI PRO Z790-P WIFI DDR5 13th Gen ATX Motherboard Full Specification
Buy MSI PRO Z790-P WIFI DDR5 13th Gen ATX Motherboard from Computer Mania BD at the best price in Bangladesh. Get it now with an official warranty. Upgrade your PC with the MSI Intel Motherboard, offering top-tier performance, reliability, and seamless connectivity for gamers and creators.
| Motherboard Specification | |
| Chipset | INTEL Z790 |
| Form Factor | ATX |
| Audio | Realtek® ALC897 Codec 7.1-Channel High-Definition Audio |
| Socket | LGA1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Max Number of Channels | Dual Channel |
| Memory Capacity | Maximum Memory Capacity 128GB |
| Frequency | Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
| Memory Slots | 4 |
| Network & Wireless | |
| Wi-Fi | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth® 5.2**, FIPS, FISMA |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz |
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port |
| Supported Sockets | LGA 1700 |
| Connectors | |
| LAN | Intel® 2.5Gbps LAN |

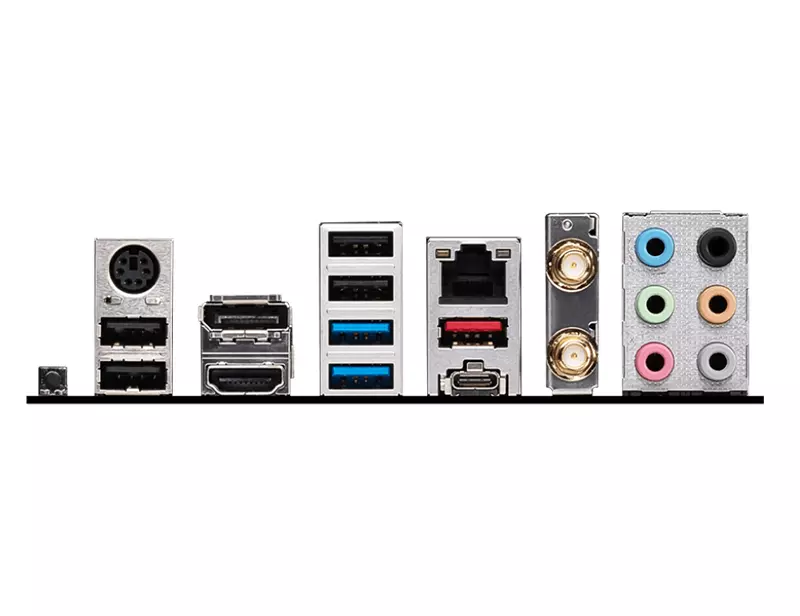

| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | 1x HDMI |
| Display Port | 1x DisplayPort |
| Ports & Slots | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Software | |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Physical Specification | |
| Dimensions (W x D x H) | 243.84mmx304.8mm |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
LGA 1700 |
| FromFactor |
ATX |
| RAM Type |
DDR5 |
| Special Features |
Wi-Fi |
