Description
MSI PRO X870-P WIFI DDR5 AMD Motherboard Full Specification
Upgrade your PC with the MSI PRO X870-P WIFI DDR5 AMD Motherboard, now available at Computer Mania BD. Experience lightning-fast DDR5 speeds, seamless WiFi connectivity, and next-gen AM5 compatibility for unbeatable performance. Whether you’re a gamer, creator, or professional, this motherboard is built to handle it all. Order now and power up your system with cutting-edge technology!
| Motherboard Specification | |
| Chipset | AMD X870 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-bit/384 kHz playback on the front panel |
| Socket | AM5 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. Overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered Memory Supports CUDIMM, Clock Driver bypass mode only* |
| Supports | |
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Supported Memory | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port Raid: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Connectors | |
| LAN | Realtek® 8126VB 5G LAN |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
| HDMI | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Display Port | 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* |
| Ports & Slots | |

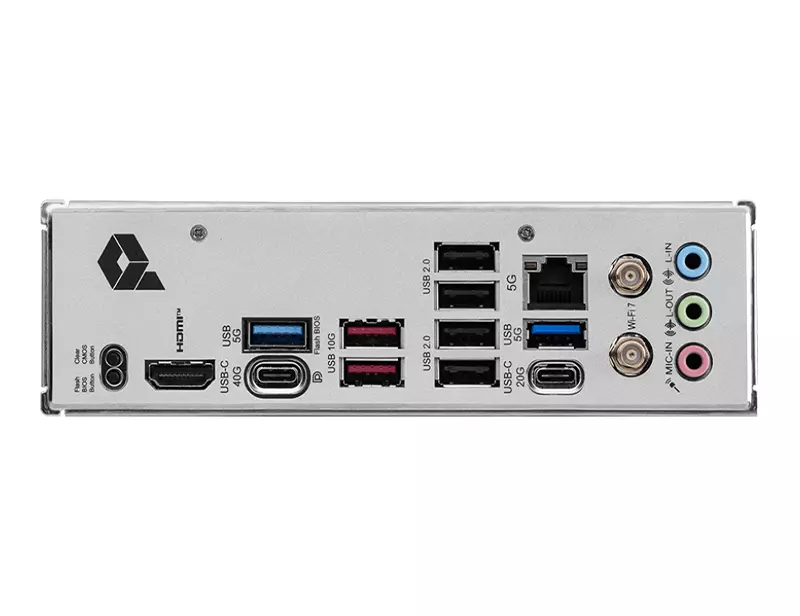

| Internal I/O Ports | 2x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| PCI-E | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Physical Specification | |
| Dimensions (W x D x H) | 243.84mmx304.8mm |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
AM5 |
| FromFactor |
ATX |
| RAM Type |
DDR5 |
| Special Features |
Wi-Fi |
