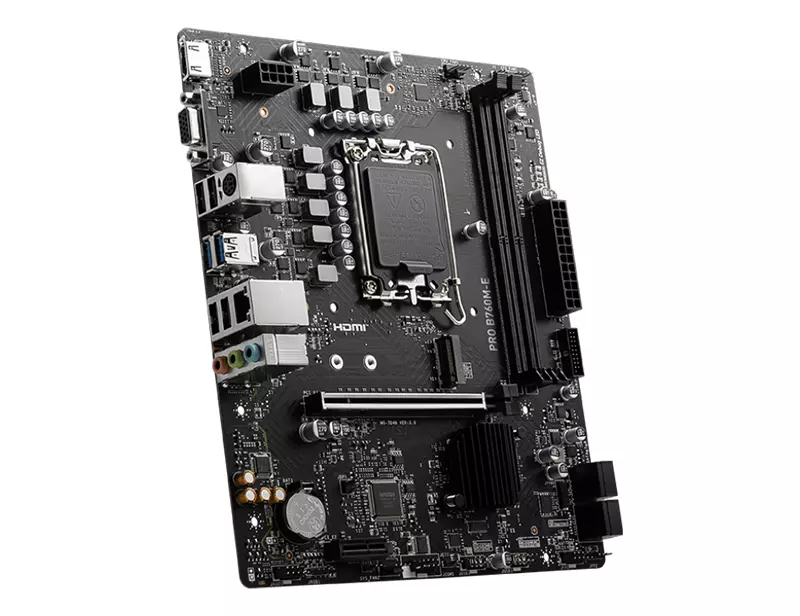

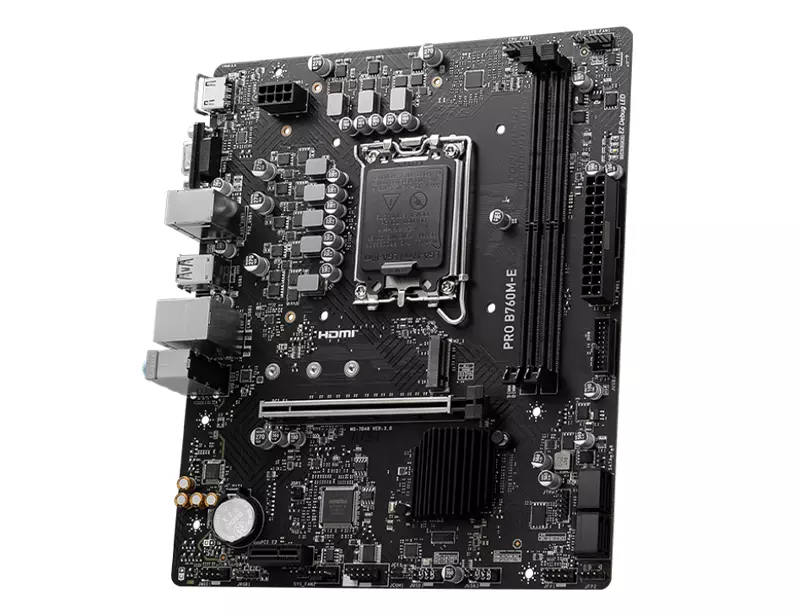

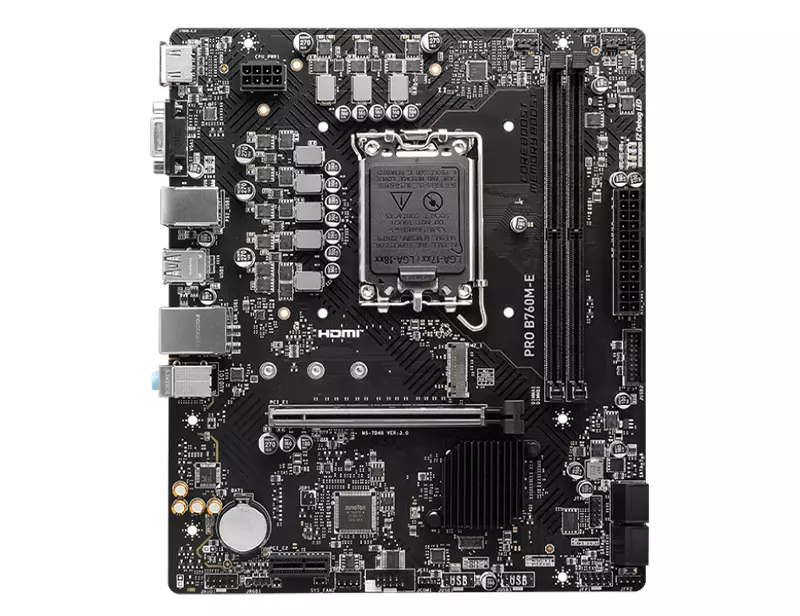

MSI PRO B760M-E DDR5 ATX Motherboard (Intel)
- 12th/ 13th Gen Intel Processors
- DDR5 Memory, up to 6800+(OC) MHz
- 12+1+1 Duet Rail Power System
- PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution
Chat Through:
Original price was: 14,200৳ .12,900৳ Current price is: 12,900৳ .
Description
MSI PRO B760M-E DDR5 ATX Motherboard Full Specification
Buy the MSI PRO B760M-E DDR5 ATX Motherboard from Computer Mania BD at the best price in Bangladesh. Get it now from our website or outlet with fast delivery and warranty.
| Motherboard Specification | |
| Chipset | Intel B760 |
| Form Factor | MATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 96GB |
| Network & Wireless | |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | Support HDMI 2.1 with HDR, maximum resolution of 4K 30Hz 1x HDMI |
| Display Port | Support DP 1.4, the maximum resolution of 8K 60Hz 1x DisplayPort |
| Ports & Slots | |
| Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| PCI-E | 1x PCI-E x16 slot 1x PCI-E x1 slot |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
LGA 1700 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR5 |
| Special Features |
CrossFireX |
