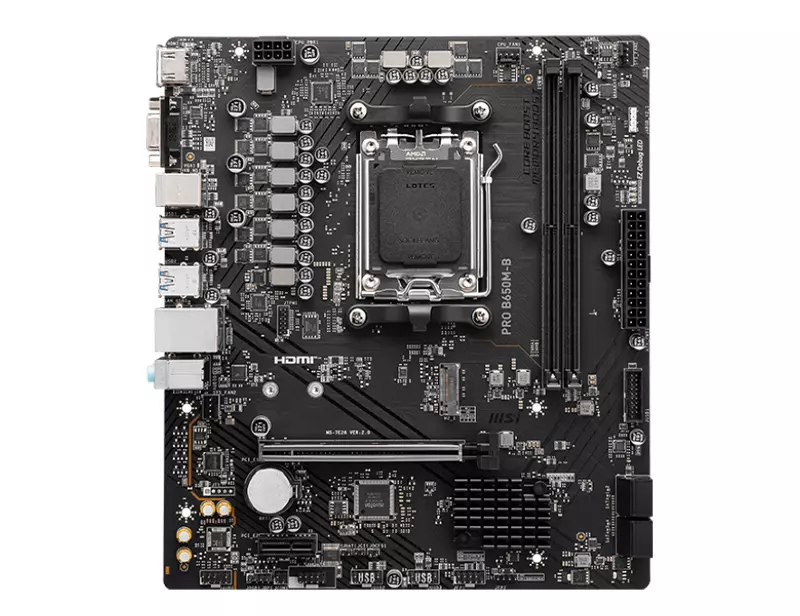

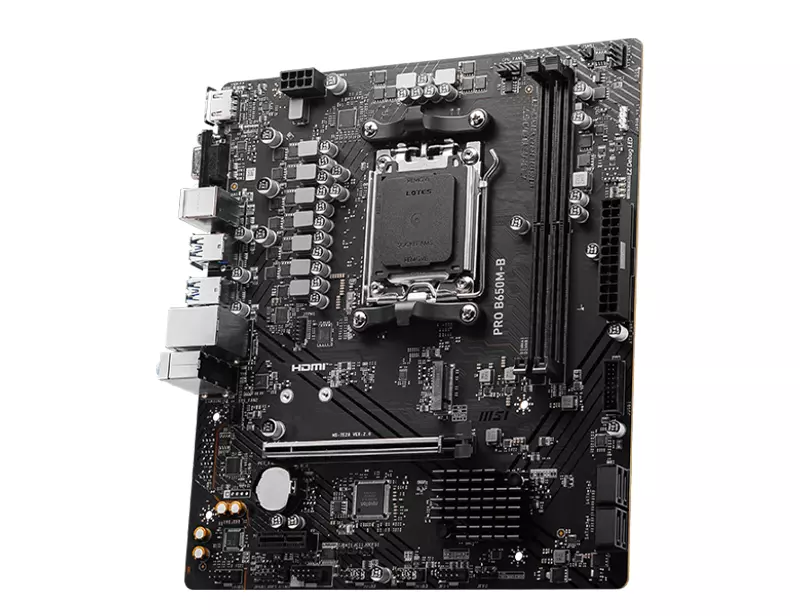

MSI PRO B650M-B AM5 Micro-ATX Motherboard Full Specification
Buy the MSI PRO B650M-B AM5 Micro-ATX Motherboard at Computer Mania BD for the best price in Bangladesh. Enjoy AM5 support, reliable performance, and advanced features for your PC build. Upgrade your PC with the best MSI AMD Motherboard for seamless efficiency.
| Motherboard Specification | |
| Chipset | AMD B650 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Socket | Socket AM5 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | Up to 96GB |
| Network & Wireless | |
| LAN | Realtek 8125BG 2.5G LAN |
| Supports | |
| Supported CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Supported Memory | 2x DDR5, Maximum Memory Capacity 96GB) Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz) Max. overclocking frequency:) • 1DPC 1R Max speed up to 6800+ MHz) • 1DPC 2R Max speed up to 6000+ MHz) Supports Dual-Channel mode) Supports non-ECC, un-buffered memory) Supports AMD EXPO |
| Connectors | |

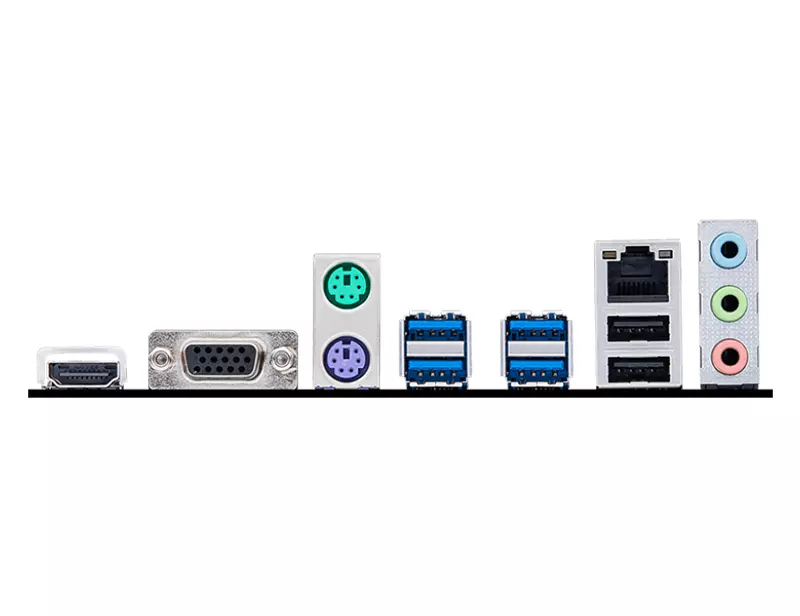

| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| HDMI | 1x HDMI |
| Ports & Slots | |
| Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| PCI-E | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
AM5 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR5 |
| Special Features |
M.2 |
