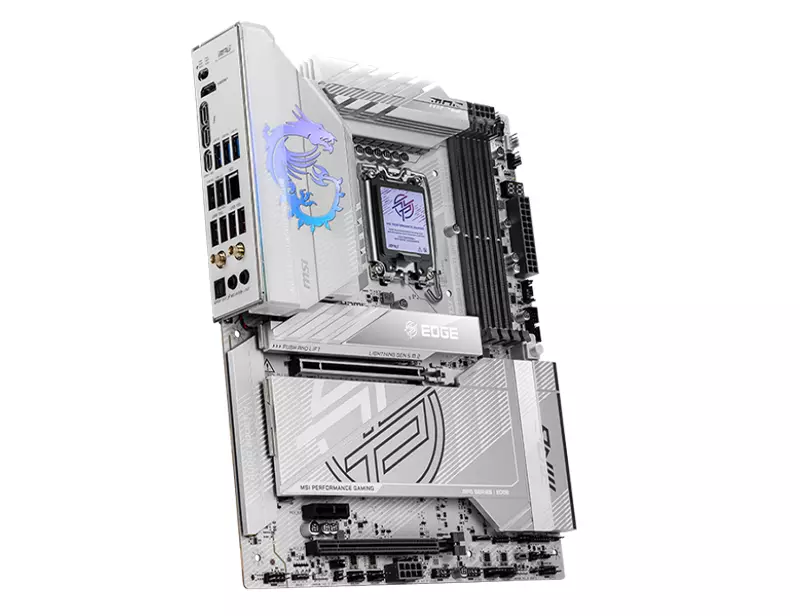

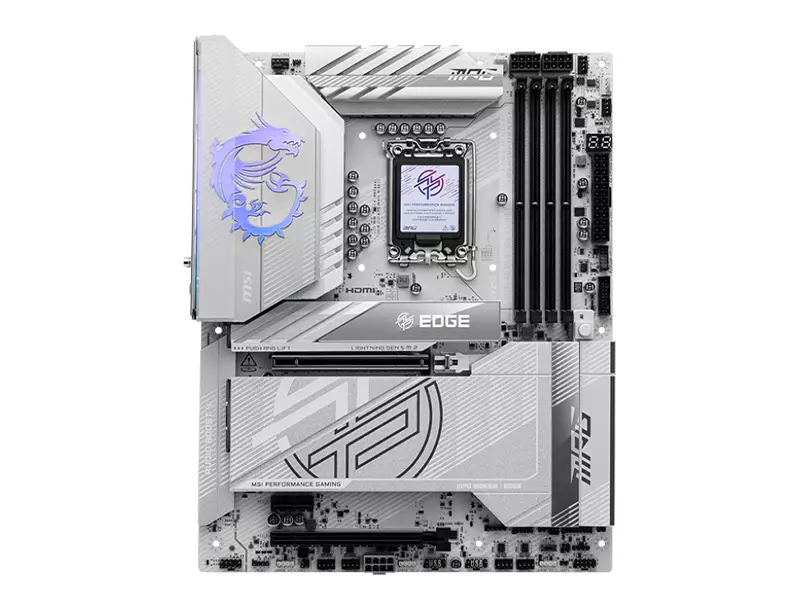

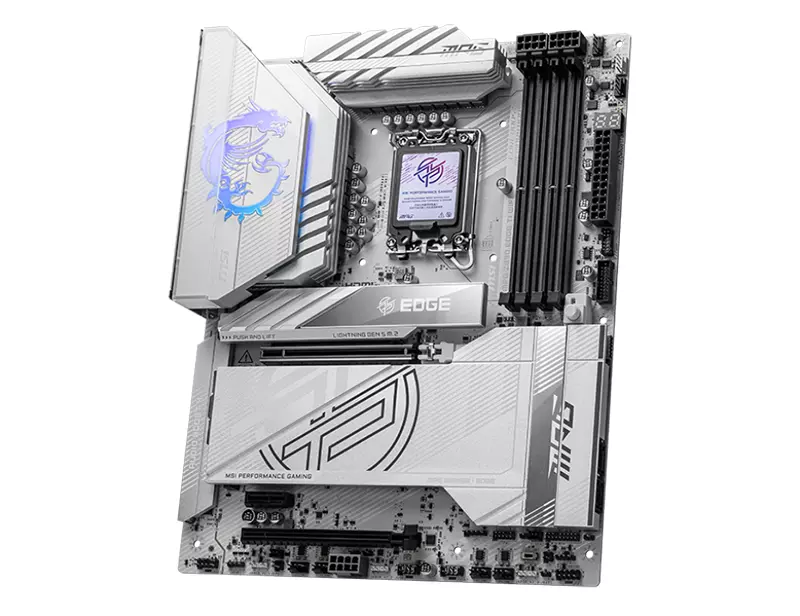

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard (Intel)

Coming soon…

Model: MPG Z890 EDGE TI WIFI
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB 9200 – 6400 (OC) MT/s
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Features: 5x M.2, Intel Wi-Fi 7

Chat Through:

Description

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard Full Specification

Buy the MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard at the best price in Bangladesh from Computer Mania BD. Get the latest MSI gaming motherboard with top-tier performance and advanced features. Order online for fast delivery in BD!

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2)
Chipset	INTEL Z890
Form Factor	ATX (243.84mmx304.8mm)
Audio	Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)• PCI_E1 supports manual BIOS adjustment to X8+X8 / X8+X4+X4
M.2 Socket	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices*Please refer to the manual for M.2 SSD heatsink restrictions.
Memory
Type	DDR5
Slots	4x DDR5 UDIMM, Maximum Memory
Supported Memory	Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory	256GB
Graphics
Graphics	1x HDMI Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

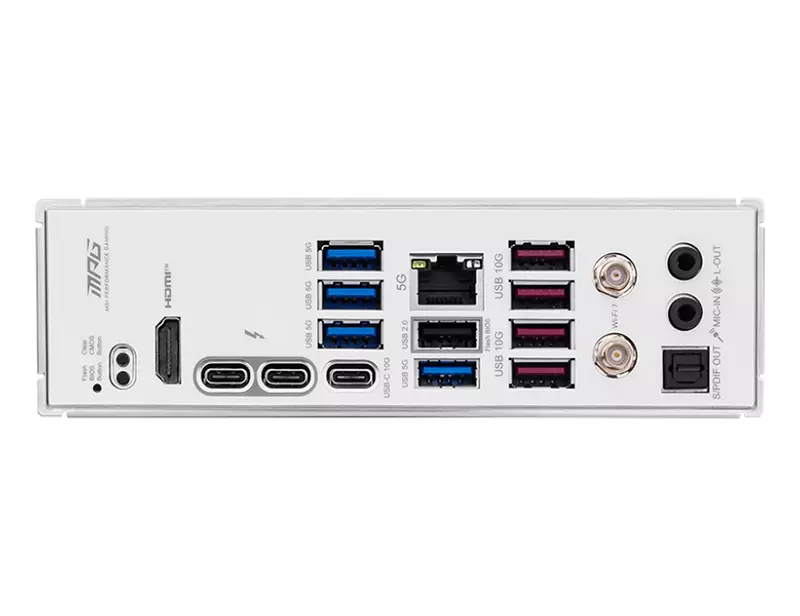

Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
USB (s)	1x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Port (s)	1x Intel® Killer™ E5000B 5G LAN
Wireless Communication module	Intel® Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	•Supports RAID 0, RAID 1, RAID 5, and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5, and Raid 10 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Manufacturing Warranty	3 years warranty

Additional information

Brand	MSI
CPU Sockets	LGA 1851
FromFactor	ATX
RAM Type	DDR5
Special Features	Wi-Fi
