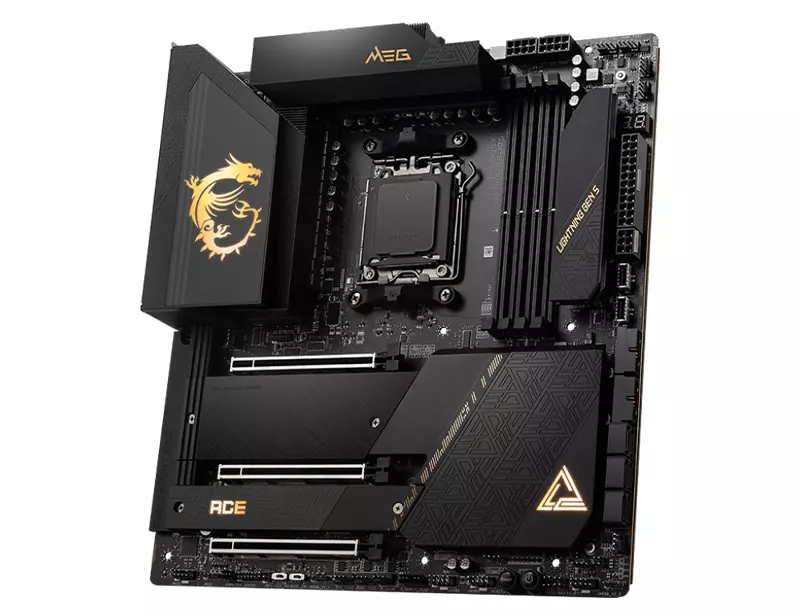

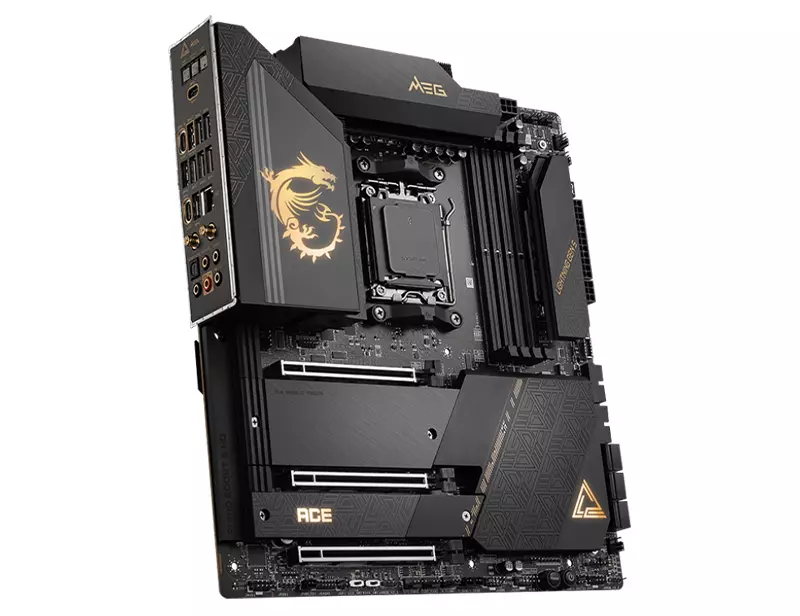

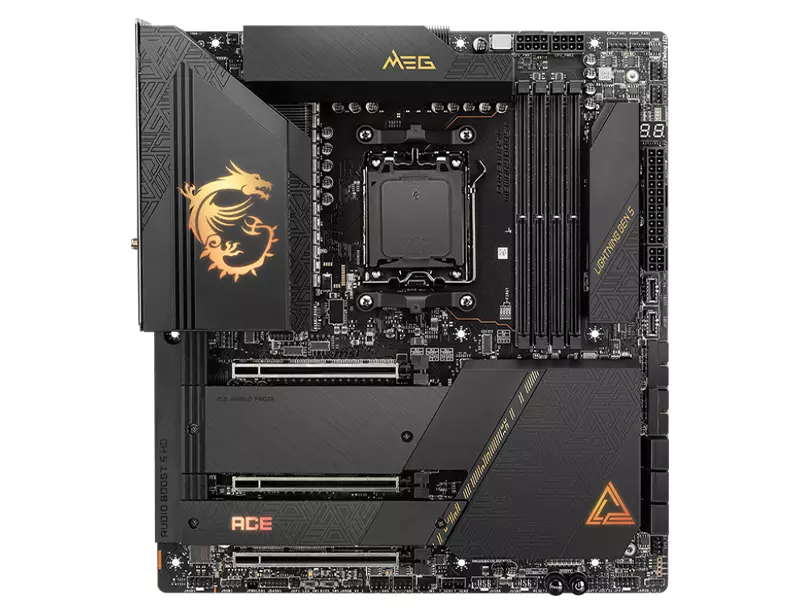

MSI MEG X670E ACE DDR5 AMD Motherboard Full Specification
Buy the MSI MEG X670E ACE DDR5 AMD Motherboard at Computer Mania BD for the best price in Bangladesh – only ৳98,900. Experience top-tier DDR5 performance, advanced AMD AM5 support, and premium features for high-end builds. Order now for the best deals!
| Motherboard Specification | |
| Chipset | AMD X670 |
| Form Factor | E-ATX 277mmx304.8mm |
| Audio | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-bit/384 kHz playback on the front panel |
| Socket | AM5 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 128GB |
| Supports | |
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Supported Memory | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Connectors | |
| LAN | Marvell AQC113-B1-C 10Gbps LAN |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |

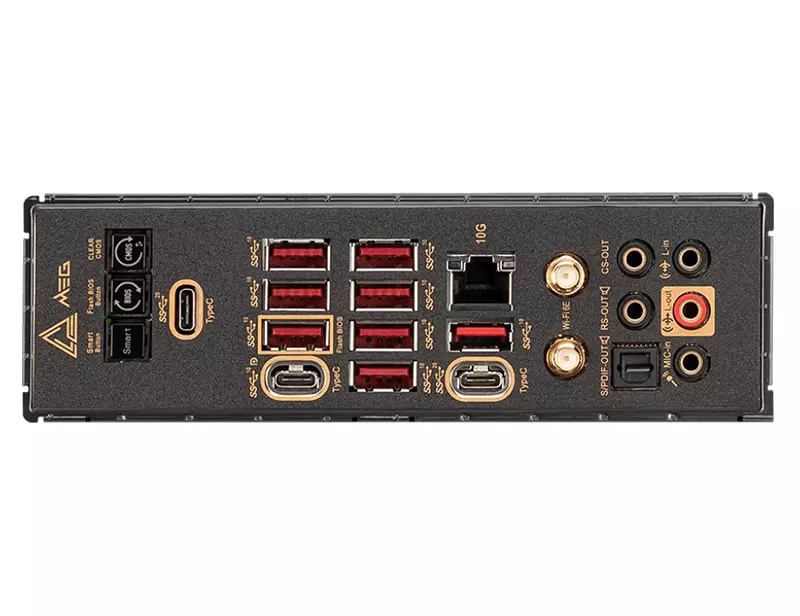

| USB | 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type-A ports (Front) 8x USB 3.2 Gen2 Type-A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 2x USB 3.2 Gen2x2 Type C ports (Rear) |
| HDMI | 1x HDMI 2.1 with HDR port |
| Display Port | 1x DisplayPort 1.4 port with HBR3 |
| Ports & Slots | |
| Slots | 4 DIMMs |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2×2 Type-C ports 1x USB 3.2 Gen 2×2 Type C ports V-check point |
| PCI-E | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
| Physical Specification | |
| Dimensions (W x D x H) | 304*243mm |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
AM5 |
| FromFactor |
Extended ATX |
| RAM Type |
DDR5 |
| Special Features |
Wi-Fi |
