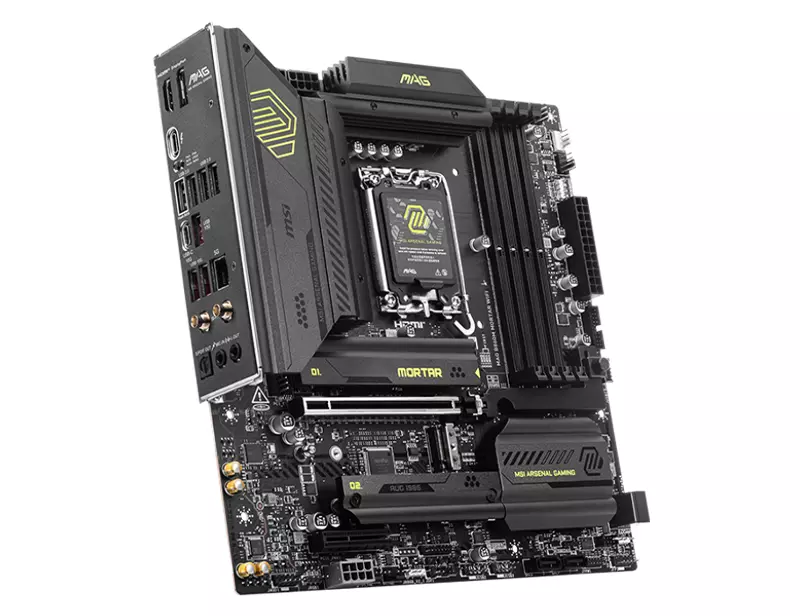

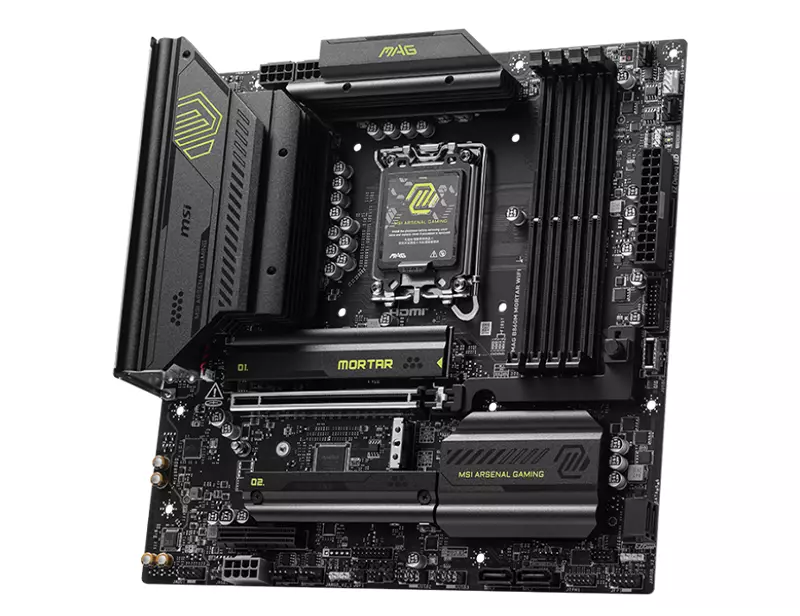

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard (Intel)
- MAG B860M MORTAR WIFI
- Intel Core Ultra Processors (Series 2), LGA 1851
- 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
- 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
- 3x M.2 Slot, 1x 5Gbps LAN, Intel Killer Wi-Fi 7, Bluetooth 5.4
Chat Through:
Original price was: 35,100৳ .32,500৳ Current price is: 32,500৳ .
Description
MSI MAG B860M MORTAR WIFI mATX Motherboard Full Specification
Buy MSI MAG B860M MORTAR WIFI mATX Motherboard from Computer Mania BD at the best price in Bangladesh. Get it now with an official warranty and fast delivery. Order online today and enjoy high-performance gaming with reliable connectivity! Upgrade your PC with an MSI Intel Motherboard and enjoy this seamless.
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 | |
| Chipset | INTEL B860 | |
| Form Factor | mATX 243.84mmx243.84mm | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output | |
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| M.2 Socket | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 with FRL | |
| Display Port (s) | 1x DisplayPort 1.4 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz | |

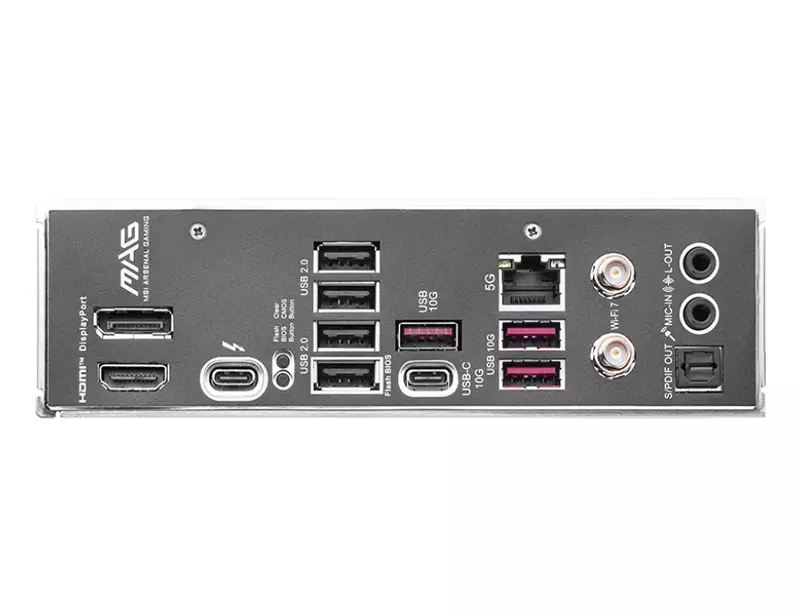

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) | |
| LAN Port (s) | Intel Killer E5000 5Gbps LAN | |
| Wireless Communication module | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM | |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED | |
| Warranty Information | ||
| Warranty | 3 Years Warranty | |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
LGA 1851 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR5 |
| Special Features |
Wi-Fi |
