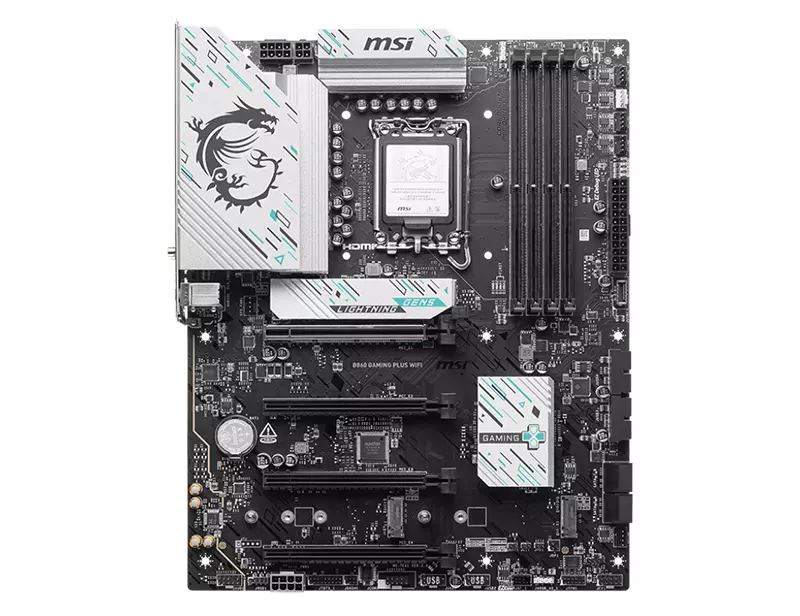

MSI B860 GAMING PLUS WIFI LGA1851 ATX Motherboard (Intel)
- Intel® Core™ Ultra Processors (Series 2) LGA 1851)
- Up to DDR5 8600+ MT/s (OC)
- 5G LAN & Wi-Fi 7
- Thunderbolt™ 4 port
- EZ M.2 Shield Frozr II
- The latest PCIe 5.0 solution with up to 128GB/s bandwidth
Chat Through:
Original price was: 29,200৳ .27,000৳ Current price is: 27,000৳ .
Description
MSI B860 GAMING PLUS WIFI ATX Motherboard Full Specification
Get the MSI B860 GAMING PLUS WIFI ATX Motherboard from Computer Mania BD at the best price in Bangladesh. The MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard delivers exceptional performance, stability, and seamless connectivity for gamers and PC enthusiasts.
| Motherboard Specification | |
| Chipset | INTEL B860 |
| Form Factor | ATX |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Socket | LGA 1851 |
| Storage Specification | |
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G |
| Memory Specification | |
| Memory Capacity | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Network & Wireless | |
| Wi-Fi | Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| LAN | Realtek® 8126 5Gbps LAN |
| Supports | |
| Supported CPU | Supports Intel® Core™ Ultra Processors (Series 2) |
| Connectors | |

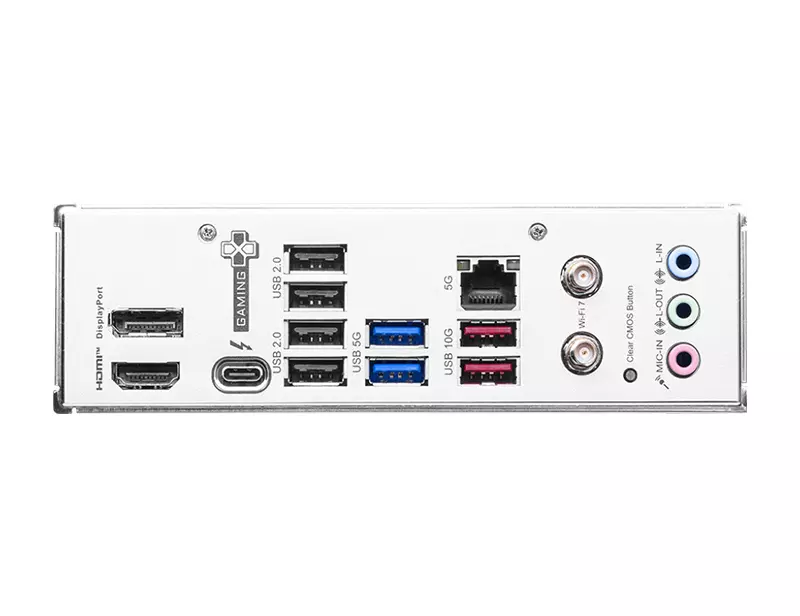

| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
| HDMI | 1x HDMI Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Display Port | 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Ports & Slots | |
| Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| PCI-E | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
LGA 1851 |
| FromFactor |
ATX |
| RAM Type |
DDR5 |
| Special Features |
M.2 ,Wi-Fi |
