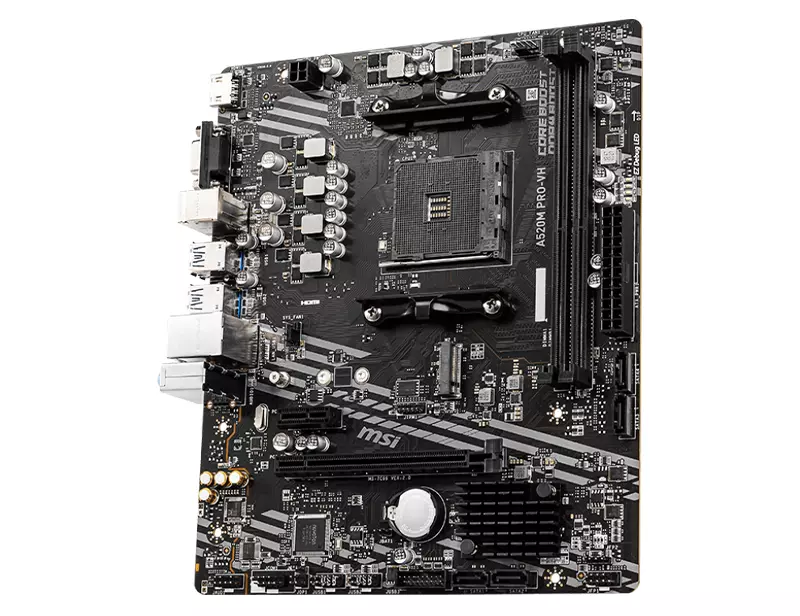

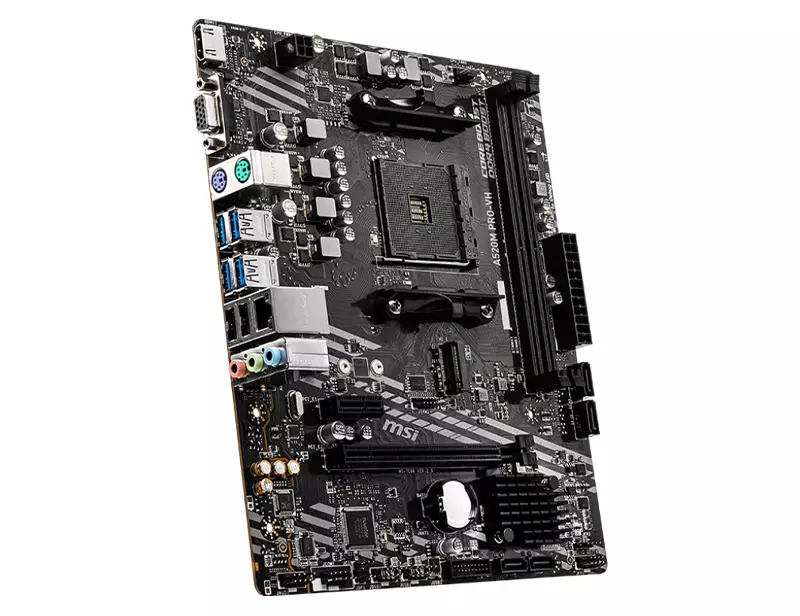

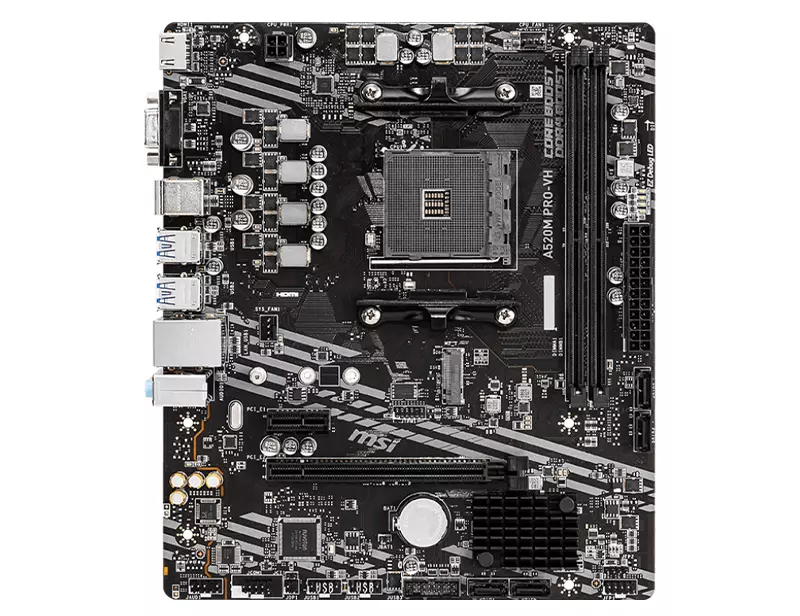

MSI A520M PRO-VH AM4 Motherboard (AMD)
- AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processor
- Supports DDR4 Memory, up to 4600(OC) MHz
- M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe-based SSDs
- Core Boost: With premium layout and Digi
Chat Through:
Original price was: 8,500৳ .7,800৳ Current price is: 7,800৳ .
Description
MSI A520M PRO-VH AM4 Motherboard Full Specification
Buy the MSI A520M PRO-VH AM4 Motherboard from Computer Mania BD at the best price in Bangladesh. Get it now for 7,800 BDT with an official warranty and fast delivery. Order online today and enjoy stable performance with reliable connectivity! Upgrade your PC with an MSI A520M PRO-VH AM4 Motherboard and enjoy the seamless.
| Motherboard Specification | |
| Chipset | AMD A520 Chipset |
| Form Factor | mATX Form Factor |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Socket | AM4 |
| Memory Specification | |
| Memory Speed | Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
| Memory Type | DDR4 |
| Max Number of Channels | 2x DDR4 memory slots |
| Memory Capacity | support up to 64GB |
| Supports | |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors |
| Supported Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.01 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Connectors | |
| LAN | 1x Realtek RTL8111H 1Gbps LAN controller |
| USB | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160 @60Hz12 |
| VGA | 1 x VGA port, supporting a maximum resolution of 2048×1280 @60Hz1 |
| Ports & Slots | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper |

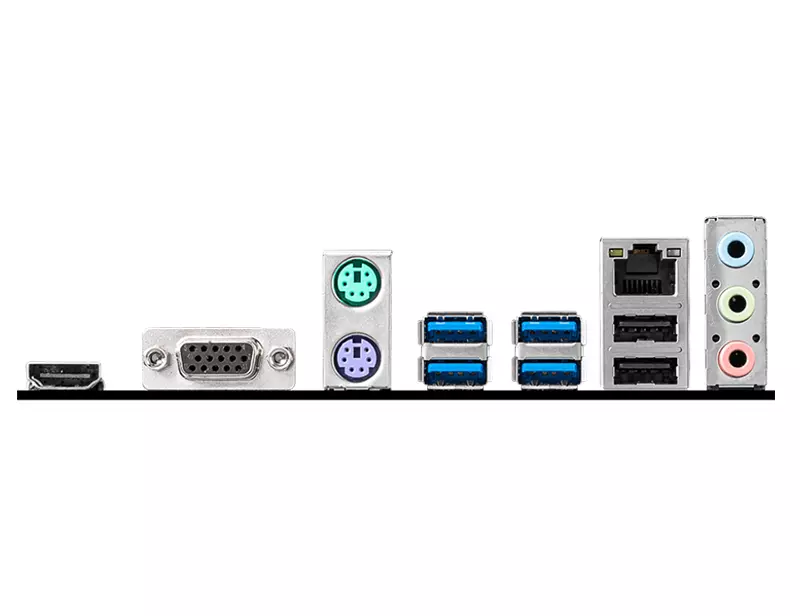

| External I/O Port | HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 Type-A |
| Expansion Slots | 1x PCIe 3.0 x1 slot 1 1x PCIe 3.0 x16 slot |
| Warranty Information | |
| Warranty | 2 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
AM4 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
