Description

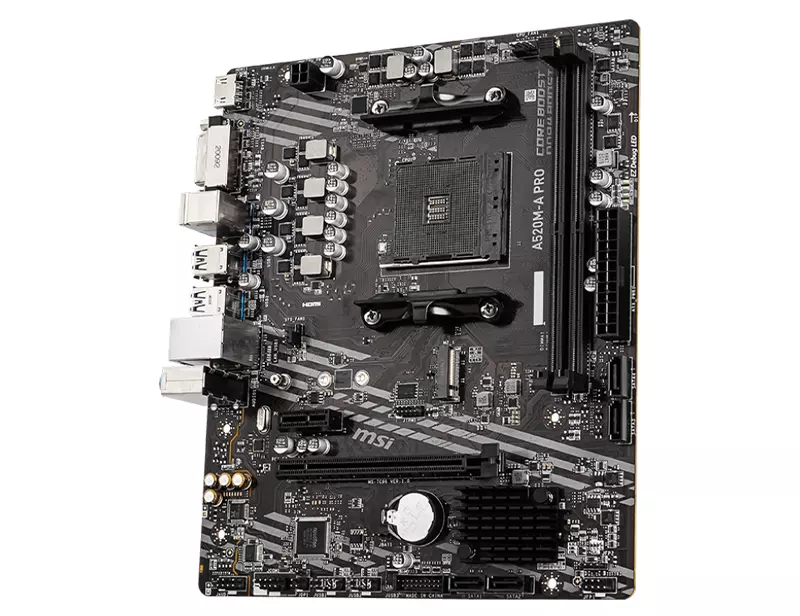

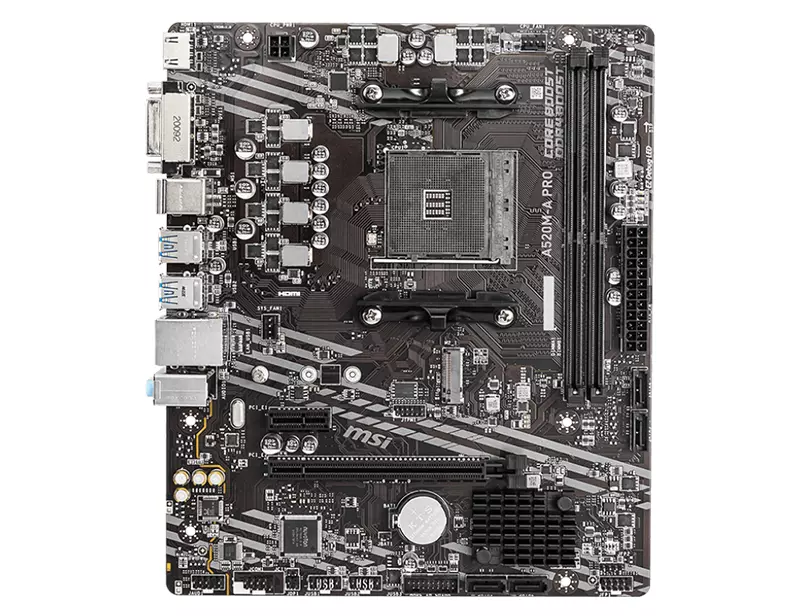

MSI A520M-A PRO Motherboard Full Specification
Buy the MSI A520M-A PRO Motherboard from Computer Mania BD at the best price in Bangladesh. It comes with an official warranty. The motherboard offers reliable performance, stability, and seamless compatibility for your AMD motherboard-powered PC build. Check out features and reviews, and order online today!
| Motherboard Specification | |
| Chipset | A520 |
| Form Factor | Micro-ATX Form Factor : 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Socket | AMD Socket AM4 |
| Memory Specification | |
| Memory Type | Dual-channel memory architecture |
| Max Number of Channels | Dual |
| Memory Capacity | 64GB |
| Memory Slots | 2x DDR4 memory slots |
| Connectors | |
| LAN | 1x Realtek® RTL8111H Gigabit LAN |
| USB | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5 Gbps Type-A ports on the back panel |
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096×2160 @60Hz |
| TPM (Trusted Platform Module ) | 1xTPM module connector |
| DVI-D | 1 |
| Ports & Slots | |
| Slots | M.2 SLOT 1 |
| Ports | USB 3.2 Ports (Front) 2(Gen 1, Type A) USB 3.2 Ports (Rear) 4(Gen 1, Type A) USB 2.0 Ports (Front) 4 USB 2.0 Ports (Rear) 2(Type A) Audio Ports (REAR) 3 HD audio connectors |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports an additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| PCI-E | PCI-EX16 1 PCI-EX1 1 PCI-E GEN Gen 2, Gen 3, Gen 4 |
| Physical Specification | |
| Weight | 1.000000 |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
AM4 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
