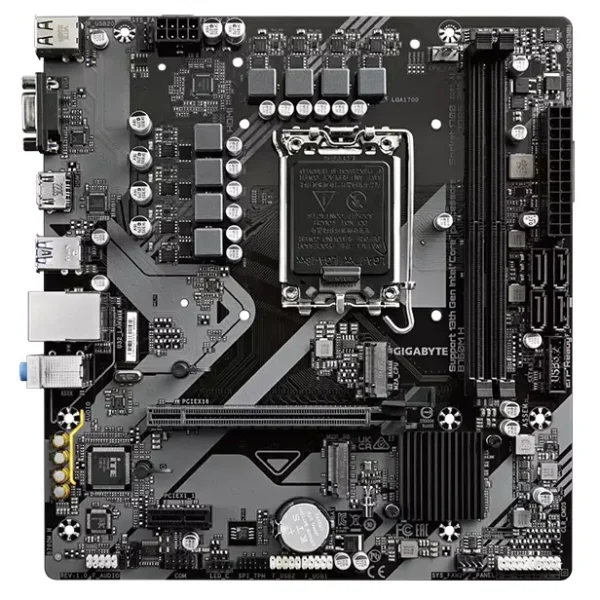

GIGABYTE B760M DS3H DDR4 mATX Motherboard Full Specification
Buy GIGABYTE B760M DS3H DDR4 mATX Motherboard from Computer Mania BD at the best price in Bangladesh. Get the latest GIGABYTE B760M DS3H DDR4 motherboard with a warranty for only 16,600/- BDT. Get the latest Gigabyte Intel Motherboard with the best deals by visiting our website. Order online now for fast delivery across BD!
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU | |
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors | |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| Audio | 1 x front panel audio header 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jump | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus | |
| Warranty Information | ||
| Warranty | 3 Years Warranty | |
Additional information
| Brand |
Gigabyte |
|---|---|
| CPU Sockets |
LGA 1700 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
