Description

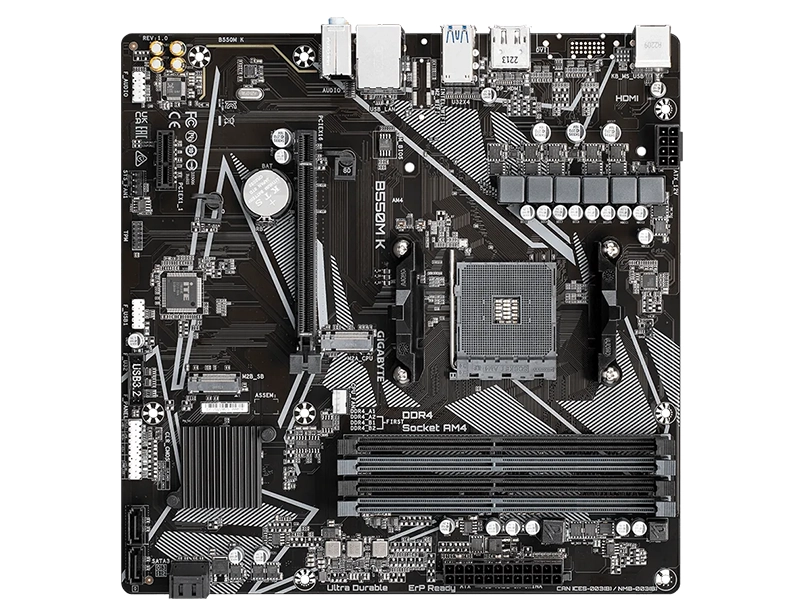

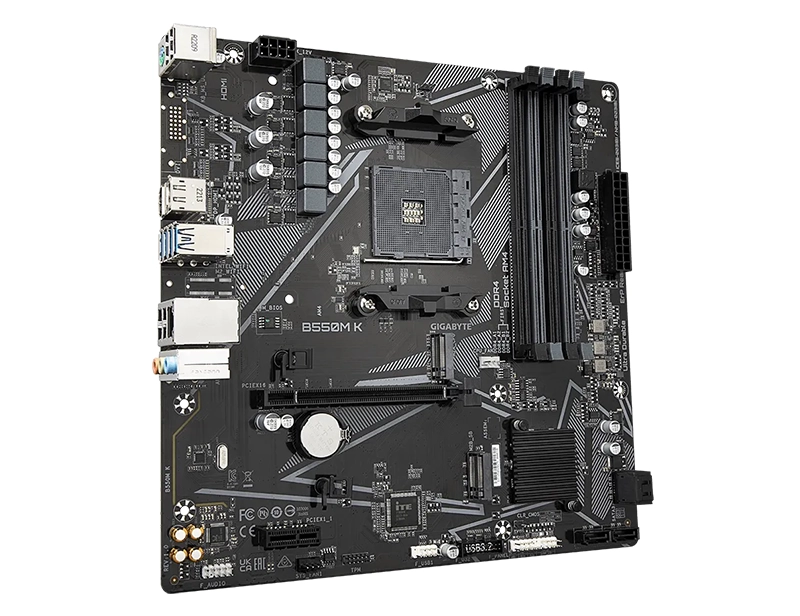

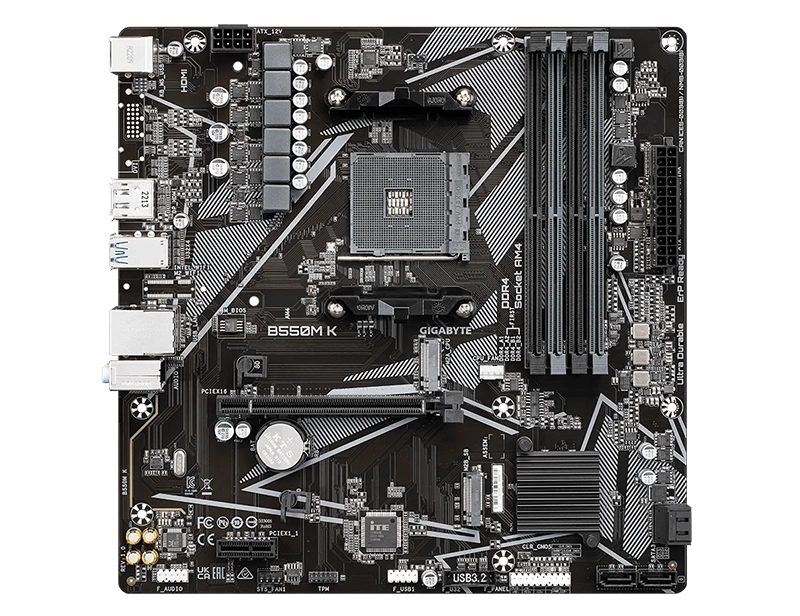

Gigabyte B550M K AMD AM4 Micro ATX Motherboard Full Specification
Buy the Gigabyte B550M K AMD AM4 Micro ATX Motherboard at the best price in Bangladesh from Computer Mania BD! Experience ultimate reliability with the best Gigabyte AMD Motherboard for your setup! Get the latest high-performance motherboard online or visit our store for the best deals.
| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated with the CPU: AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x1 slot, integrated into the Chipset: Supporting PCIe 3.0 x1 mode | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |

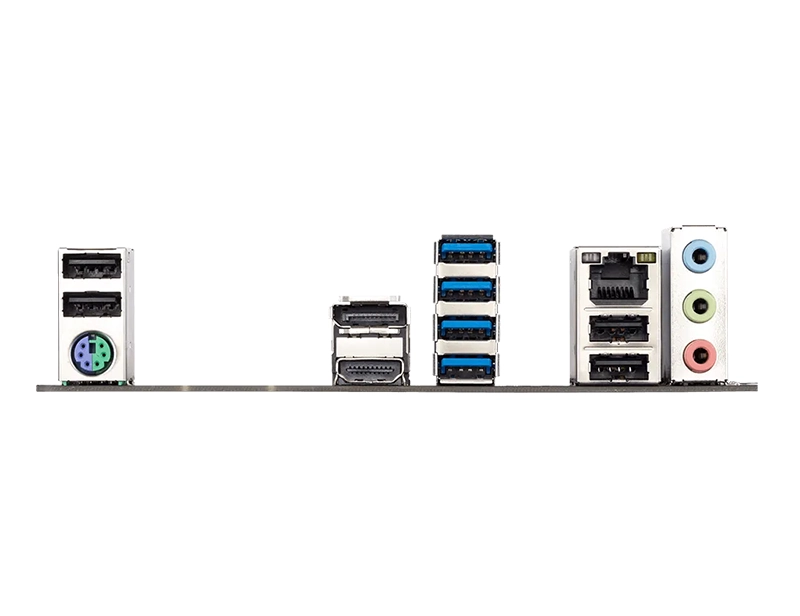

| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated into the Chipset: | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software | |
| Warranty Information | ||
| Warranty | 3 Years Warranty | |
Additional information
| Brand |
Gigabyte |
|---|---|
| CPU Sockets |
AM4 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
