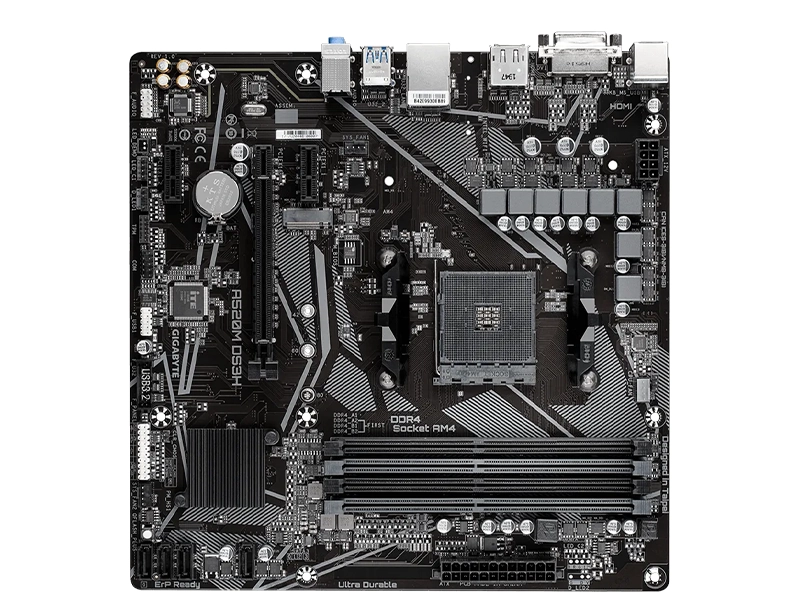

Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard (AMD)
- Gigabyte A520M DS3H Ultra Durable
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Ultra-Fast NVMe
- RGB FUSION 2.0 Supported
- 5+3 Phases Pure Digital VRM
Chat Through:
Original price was: 10,500৳ .9,600৳ Current price is: 9,600৳ .
Description
Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard Full Specification
Buy the Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard at a competitive price of 9,600/- BDT from Computer Mania BD. Enjoy reliable performance and durability for your AMD build. Order online now for fast delivery across Bangladesh.
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD A520 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Memory | ||
| Type | Dual-Channel Memory Architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 HzSupport for up to 3 displays at the same time | |
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install | |
| Warranty Information | ||
| Warranty | 3 Years Warranty | |
Additional information
| Brand |
Gigabyte |
|---|---|
| CPU Sockets |
AM4 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
