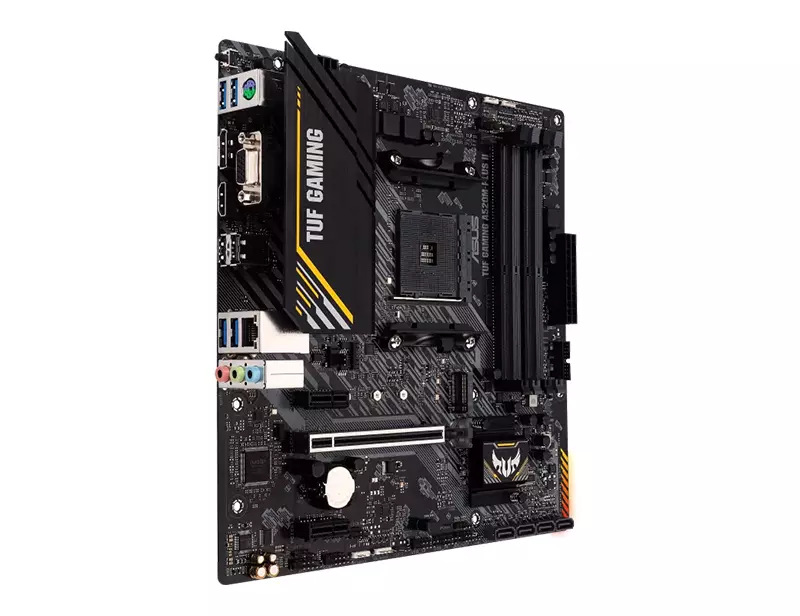

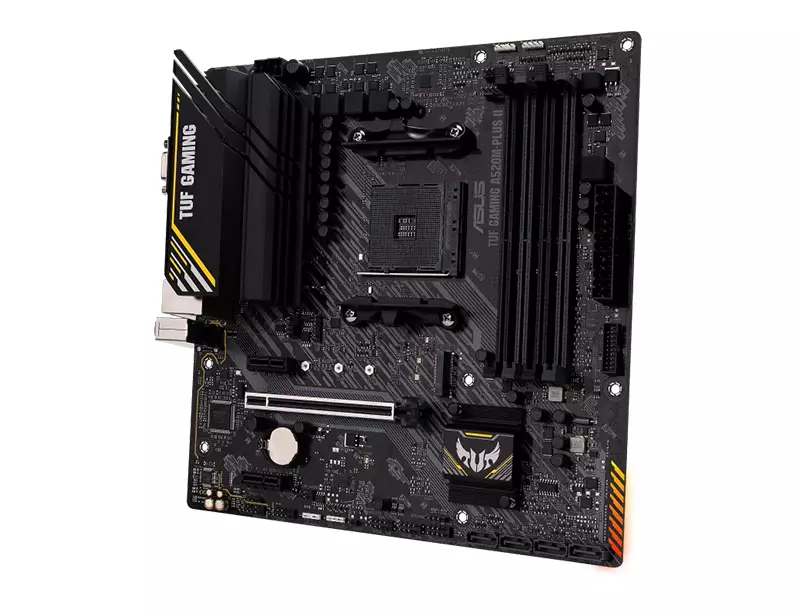

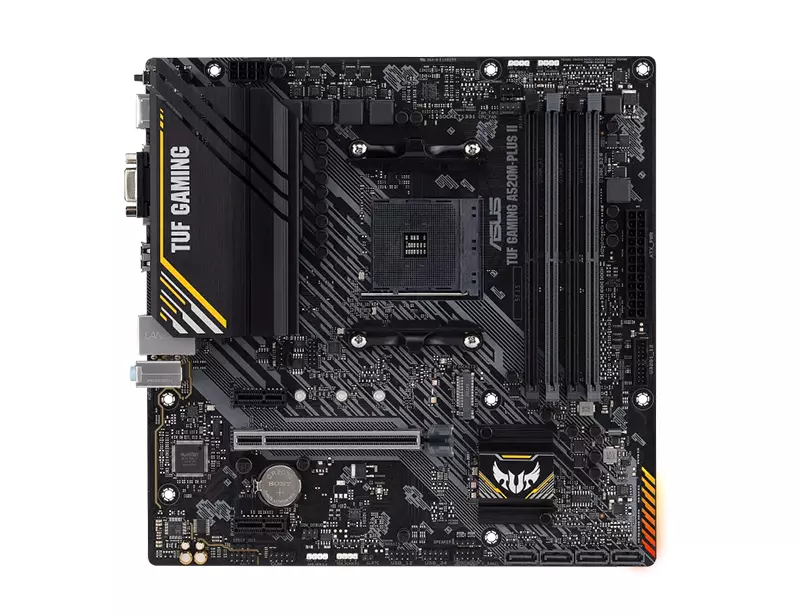

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard (AMD)
- TUF GAMING A520M-PLUS II
- Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
- Supported RAM: 4 x DIMM, Max. 128GB, DDR4
- Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
- Onboard RGB headers
Chat Through:
Original price was: 13,200৳ .12,000৳ Current price is: 12,000৳ .
Description
Asus TUF GAMING A520M PLUS II AM4 Motherboard Full Specification
Buy the Asus TUF GAMING A520M PLUS II AM4 Motherboard from Computer Mania BD at the best price in Bangladesh. Get the latest Asus TUF series motherboard with top performance, durability, and a reliable warranty. Explore a wide range of Asus AMD Motherboards for the best compatibility. Order now for the best deals and fast delivery!
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | A520 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm | |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback” Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub | |

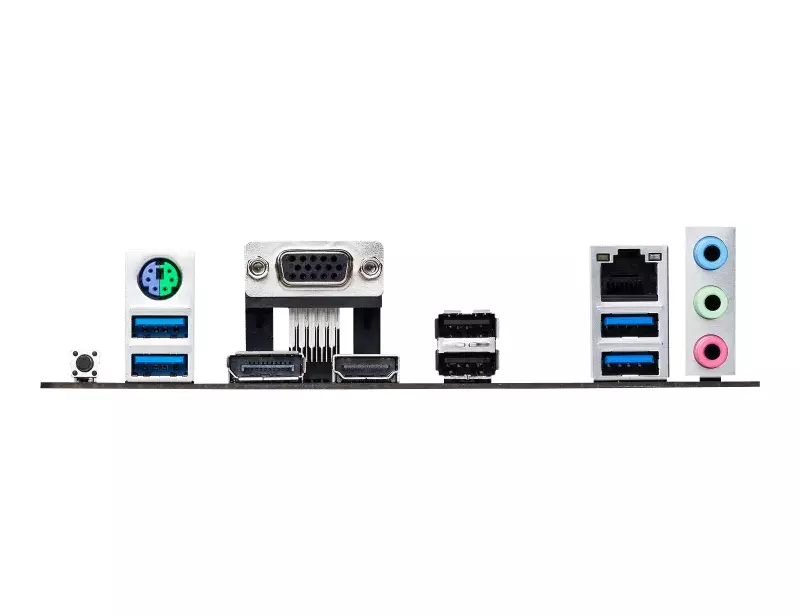

| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 6 ports | |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard | |
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and cooling-related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related Storage related USB Miscellaneous | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – ASUS Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers | |
| Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ – EZ Update – PC Cleaner – System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode | |
| Warranty Information | ||
| Warranty | 3 Years | |
Additional information
| Brand |
Asus |
|---|---|
| CPU Sockets |
AM4 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
