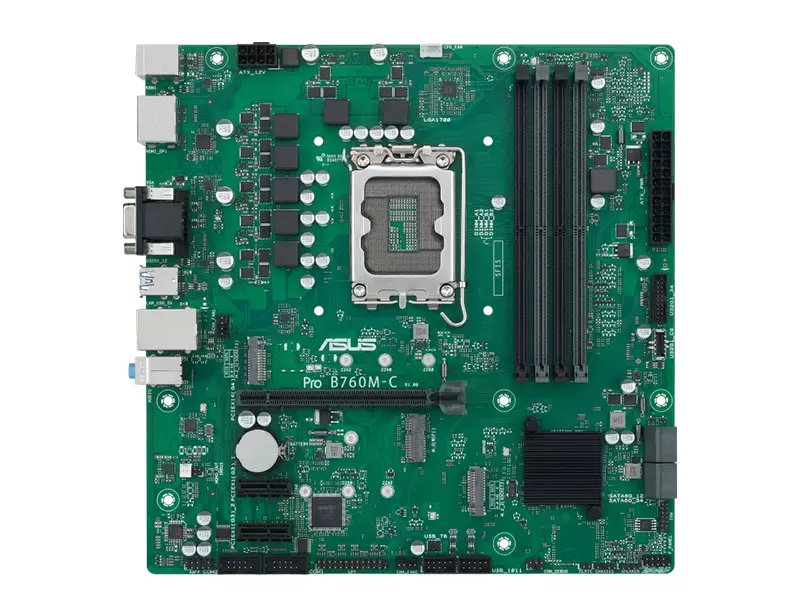

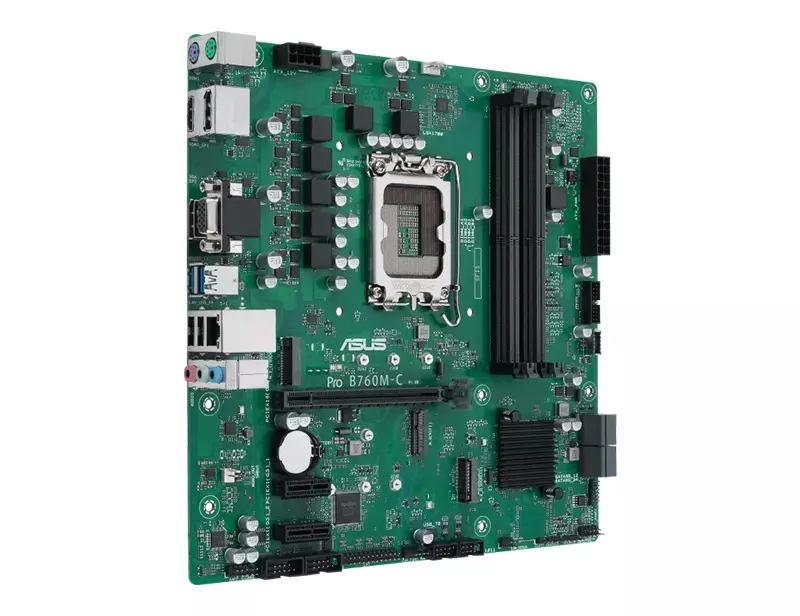

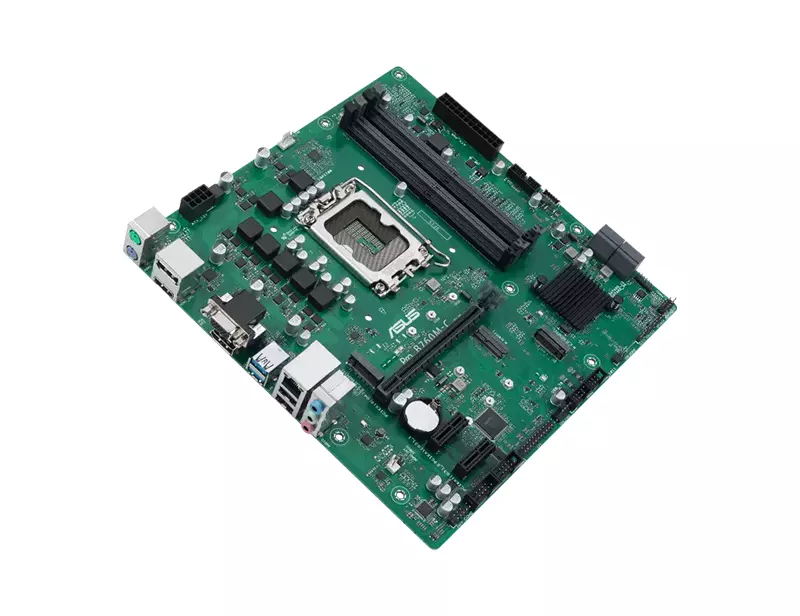

ASUS PRO B760M-C-CSM Micro-ATX Motherboard (Intel)
- PRO B760M-C-CSM
- Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC)
- Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI
- 1 x Intel 1Gb Ethernet
Chat Through:
20,900৳ Original price was: 20,900৳ .19,200৳ Current price is: 19,200৳ .
Description
ASUS PRO B760M C CSM Motherboard Full Specification
Buy the ASUS PRO B760M C CSM Motherboard at the best price in BD from Computer Mania BD. Get high performance, reliability, and durability for professional builds. Order online now for fast delivery and secure shopping. This ASUS Intel Motherboard is perfect for efficient computing. Upgrade your PC with the latest ASUS technology today!
Basic Information | ||
Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
Chipset | Intel B760 Chipset | |
BIOS | 128Mb Flash ROM | |
Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback | |
Expansion Slots | ||
PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots | |
Memory | ||
Type | DDR5 | |
Slots | 4 x DIMM | |
Supported Memory | DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimum II | |
Maximum Memory | Max. 192GB | |
Graphics | ||
Graphics | 2 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. | |
Connector & Ports | ||
HDMI | 1 x HDMI | |
Display Port (s) | 2 x DisplayPort | |
VGA (s) | 1 x VGA port | |
USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard | |
Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * The Wi-Fi module is sold separately. | |
Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports | |
RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
Audio | 3 x Audio jacks | |
Internal I/O Ports | Fan and Cooling-related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header | |
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
Others | ||
Special Features | ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – Box Headers Bespoke Motherboard Design & Business Focused Features – ASUS Self Recovering BIOS – ASUS Event Log – ASUS Commercial BIOS kit* – Anti-Moisture Coating – 24/7 Reliability – Overcurrent Protection | |
Bundled Software | ASUS Exclusive Software IT Management software supported – ASUS Control Center Express (ACCE) | |
Warranty Information | ||
Warranty | 3 Years |
Additional information
Brand |
Asus |
---|---|
CPU Sockets |
LGA 1700 |
FromFactor |
Micro ATX |
RAM Type |
DDR5 |
Special Features |
M.2 |
