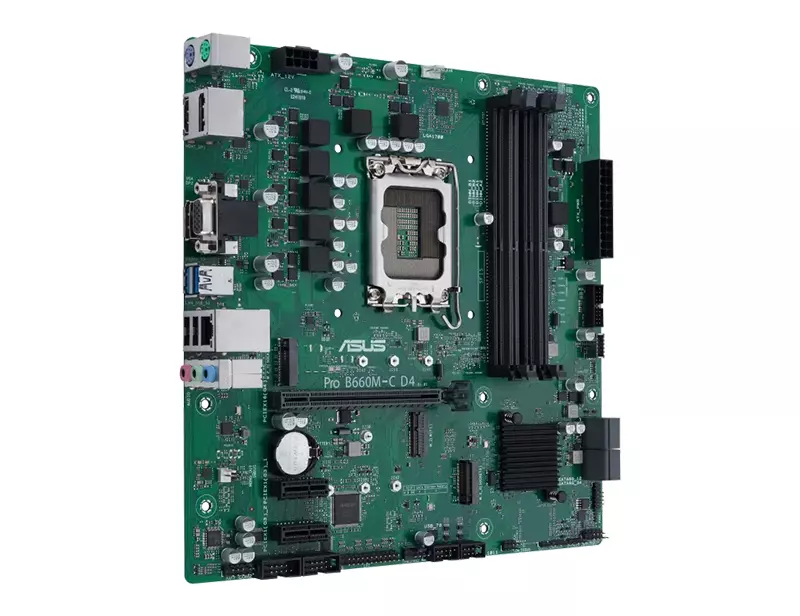

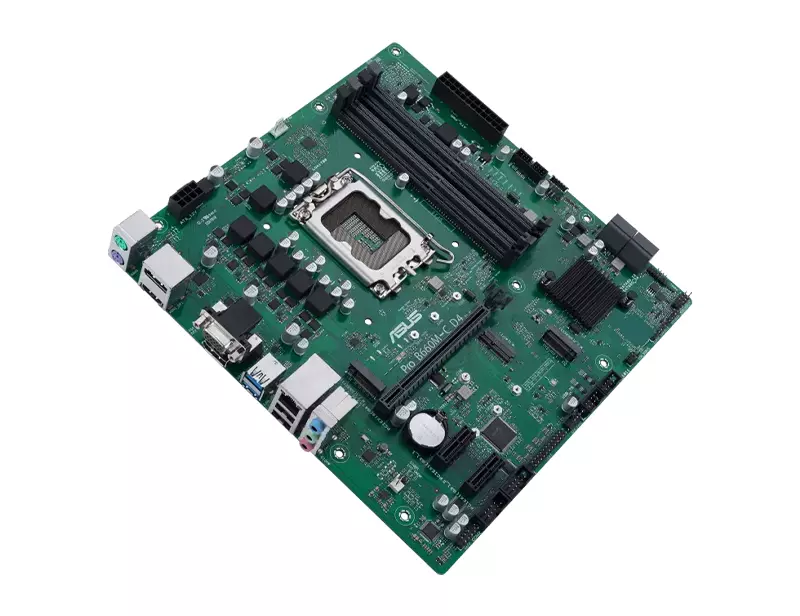

ASUS Pro B660M-C D4-CSM mATX Motherboard (Intel)
- Pro B660M-C D4-CSM
- Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)
- Supported RAM: 4x DDR4, Max 128GB
- Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI
- 1 x Intel 1Gb Ethernet
Chat Through:
Original price was: 18,500৳ .16,700৳ Current price is: 16,700৳ .
Description
ASUS Pro B660M C D4 CSM Motherboard Full Specification
Buy the ASUS Pro B660M C D4 CSM Motherboard at the best price in BD from Computer Mania BD. This high-performance motherboard offers durability, stability, and advanced features for professional builds. Order online now for fast delivery and secure shopping. Get the latest ASUS Intel Motherboard for smooth and efficient computing. Upgrade your PC with the latest ASUS technology today!
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU type. | |
| Chipset | Intel B660 Chipset | |
| BIOS | 128Mb Flash ROM | |
| Form Factor | microATX 24.4cm x 24.4cm | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback ” * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimum | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. | |

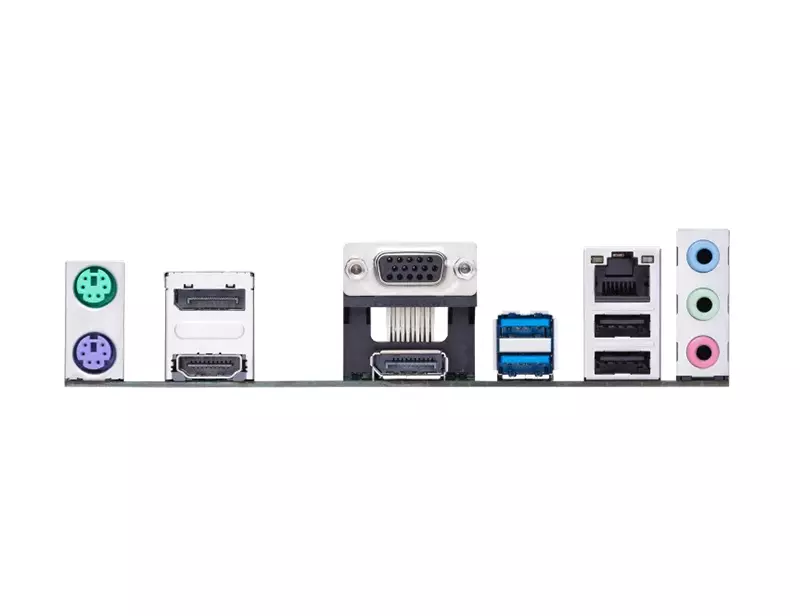

| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 2 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard | |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *The Wi-Fi module is sold separately. | |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and cooling-related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related Storage related USB Miscellaneous | |
| Others | ||
| Special Features | ASUS EZ DIY – Box Headers Bespoke Motherboard Design & Business Focused Features – Q-LED Core – ASUS Self Recovering BIOS – ASUS Event Log – ASUS Commercial BIOS kit – Anti-Moisture – 24/7 Reliability – Overcurrent Protection TPM IC onboard | |
| Bundled Software | ASUS Exclusive Software IT Management software supported – ASUS Control Center Express(ACCE) | |
| Warranty Information | ||
| Warranty | 3 Years | |
Additional information
| Brand |
Asus |
|---|---|
| CPU Sockets |
LGA 1700 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
