Asus PRIME H610M-CS DDR5 mATX Motherboard (Intel)
- PRIME H610M-CS DDR5
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 96GB, DDR5
- Graphics Output: 1 x VGA, 1 x HDMI
- 1 x Realtek 1Gb Ethernet
Chat Through:
12,900৳ Original price was: 12,900৳ .11,500৳ Current price is: 11,500৳ .
Description
Asus PRIME H610M CS Motherboard Full Specification
Buy the Asus PRIME H610M CS Motherboard at the best price in BD from Computer Mania BD. Get the latest Asus PRIME H610M-CS DDR5 mATX Motherboard with top performance and reliability. Order online for fast delivery and secure shopping. Upgrade your PC with the best deals today!
Basic Information | ||
Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
Chipset | Intel H610 Chipset | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
Expansion Slots | ||
PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot | |
M.2 Socket | 1 x M.2 slot | |
Memory | ||
Type | DDR5 | |
Slots | 2 x DIMM | |
Supported Memory | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) | |
Maximum Memory | Max. 96GB | |
Graphics | ||
Graphics | Supports 4K@60Hz as specified in HDMITM 2.1. | |
Connector & Ports | ||
HDMI | 1 x HDMI port | |
VGA (s) | 1 x VGA port | |
USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports | |
Audio | 3 x Audio jacks | |

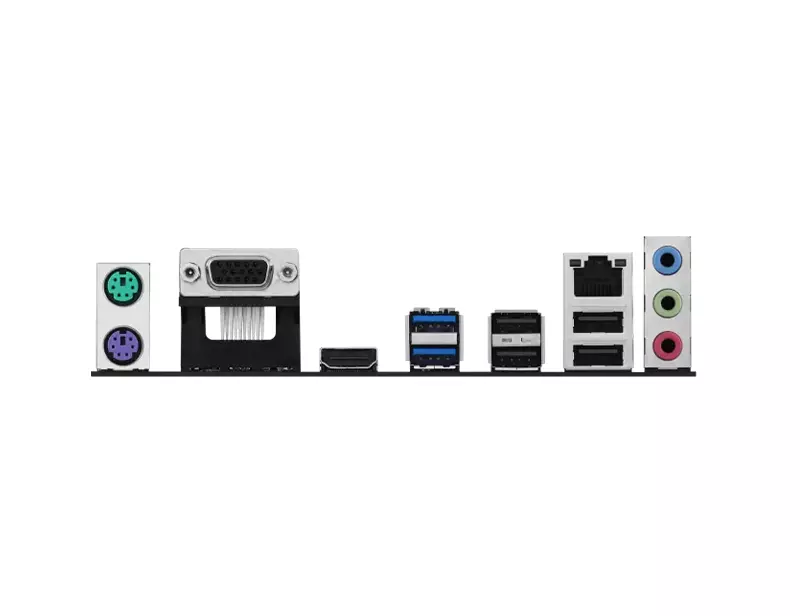

Internal I/O Ports | Internal I/O Connectors: Fan and Cooling-related Back Panel I/O Ports: 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) | |
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
Others | ||
Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Aluminum heatsink design USBGuard | |
Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode | |
Warranty Information | ||
Warranty | 3 Years warranty |
