Asus PRIME B760M-K mATX Motherboard (Intel)
- PRIME B760M-K
- Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DDR5, Max. 96GB 8000(OC)
- Graphics Output: 1 x VGA port, 1 x HDMI
- 1 x Realtek 2.5Gb Ethernet
Chat Through:
Original price was: 18,500৳ .17,000৳ Current price is: 17,000৳ .
Description
Asus PRIME B760M K Motherboard Full Specification
Buy the Asus PRIME B760M K Motherboard at the best price in BD from Computer Mania. Get high performance, reliability, and advanced features for your PC build. Get the latest ASUS Intel Motherboard for smooth and efficient computing. Order online now for fast delivery and secure shopping!
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel B760 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers | |
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) | |
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | 1 x VGA port 1 x HDMI port | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| VGA (s) | 1 x VGA port | |

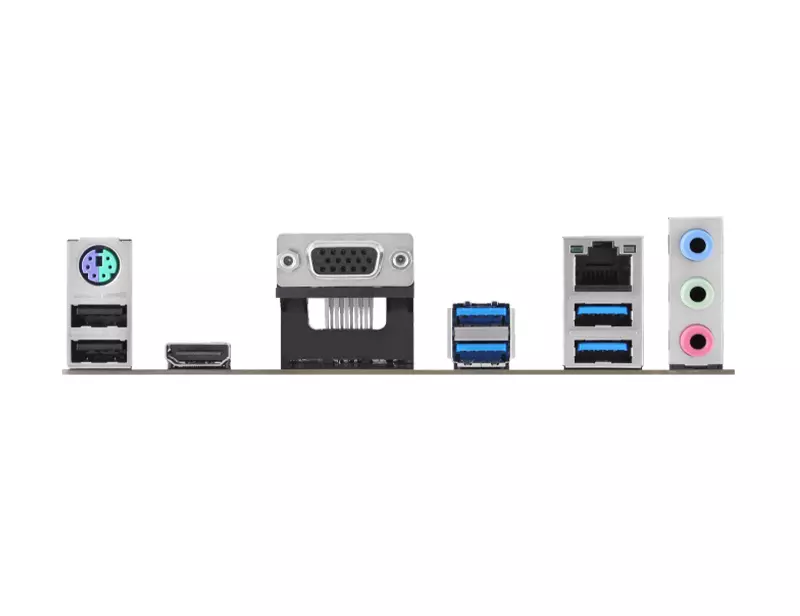

| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports | |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports | |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – ProCool ASUS Thermal Solution – VRM heatsink design Aura Sync – Aura RGB header – Addressable Gen 2 headers | |
| Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert – Power Saving AI Suite 3 – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode | |
| Warranty Information | ||
| Warranty | 3 Years Warranty | |
Additional information
| Brand |
Asus |
|---|---|
| CPU Sockets |
LGA 1700 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR5 |
| Special Features |
M.2 |
