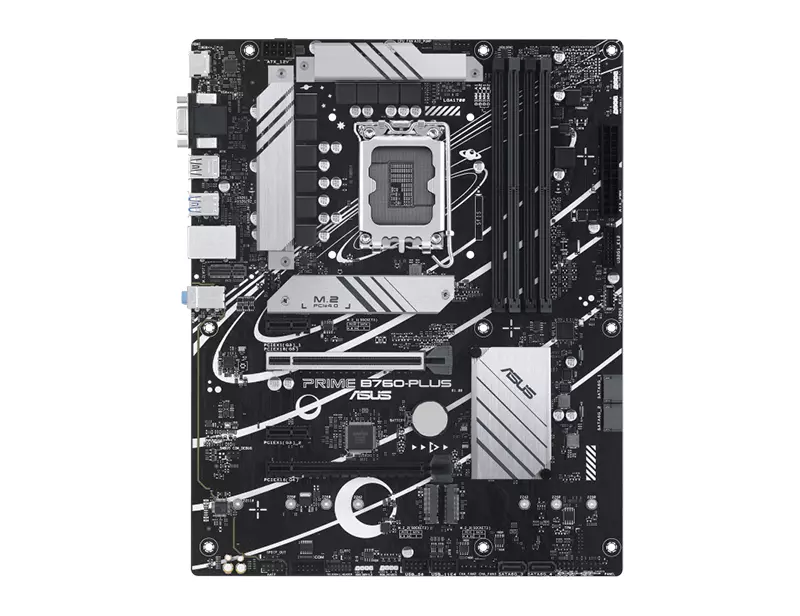

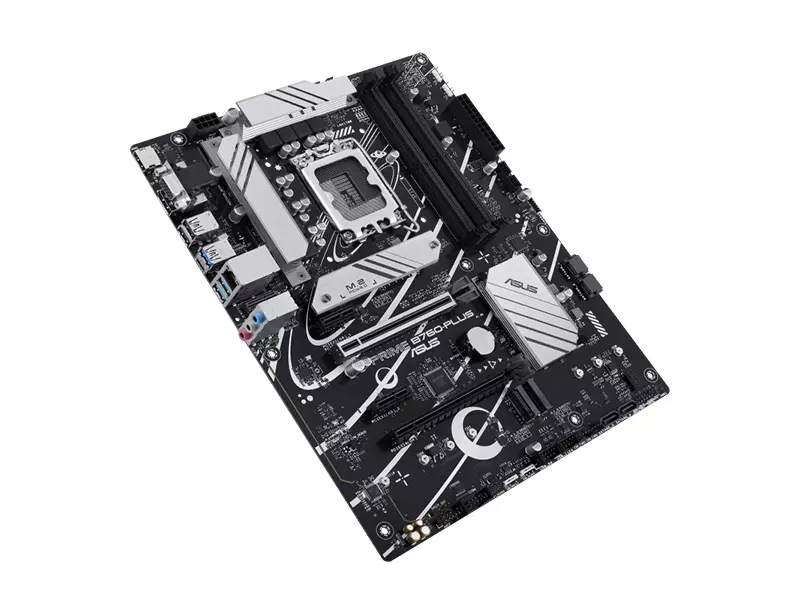

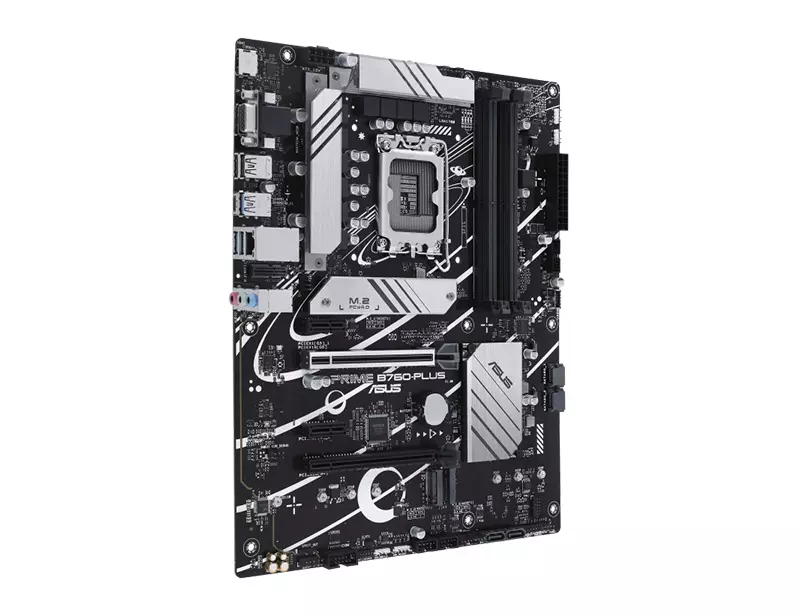

ASUS PRIME B760-PLUS ATX Motherboard (Intel)

  • PRIME B760-PLUS
  • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
  • Graphics Output: 1x DisplayPort, 1x VGA port, 1x HDMI
  • 3x M.2 slot, Realtek 2.5Gb Ethernet
Chat Through:

Original price was: 25,000৳ .Current price is: 22,900৳ .

Description

Description

ASUS PRIME B760 PLUS Motherboard Full Specification

Buy the ASUS PRIME B760 PLUS Motherboard at the best price in BD from Computer Mania BD. Experience high performance, reliability, and advanced features for your PC build. Order online for fast delivery and secure shopping. This ASUS Intel Motherboard is perfect for efficient computing. Upgrade your system with the latest ASUS PRIME B760 PLUS Motherboard today!

Basic Information
Supported CPUIntel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron
Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B760 Chipset
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCIIntel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Memory
TypeDDR5
Slots4 x DIMM
Supported MemoryDDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory192GB
Graphics
Graphics1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.)
1 x VGA port
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)

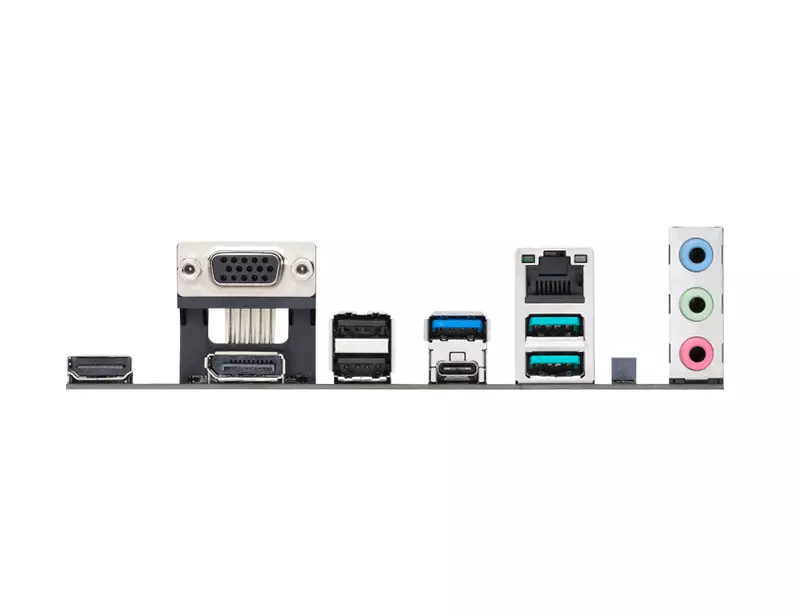

Connector & Ports
HDMI1x HDMI
Display Port (s)1x DisplayPort
VGA (s)1 x VGA port
USB (s)Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)1 x Realtek 2.5Gb Ethernet
Wireless Communication moduleVertical M.2 slot only (Key E, CNVi & PCIe)*
* The Wi-Fi module is sold separately.
Supported StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio3 x Audio jacks
Internal I/O PortsFan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
Others
Special FeaturesASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled SoftwareASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Warranty3 Years
Additional information

Additional information

Brand

Asus

CPU Sockets

LGA 1700

FromFactor

ATX

RAM Type

DDR5

Special Features

M.2
