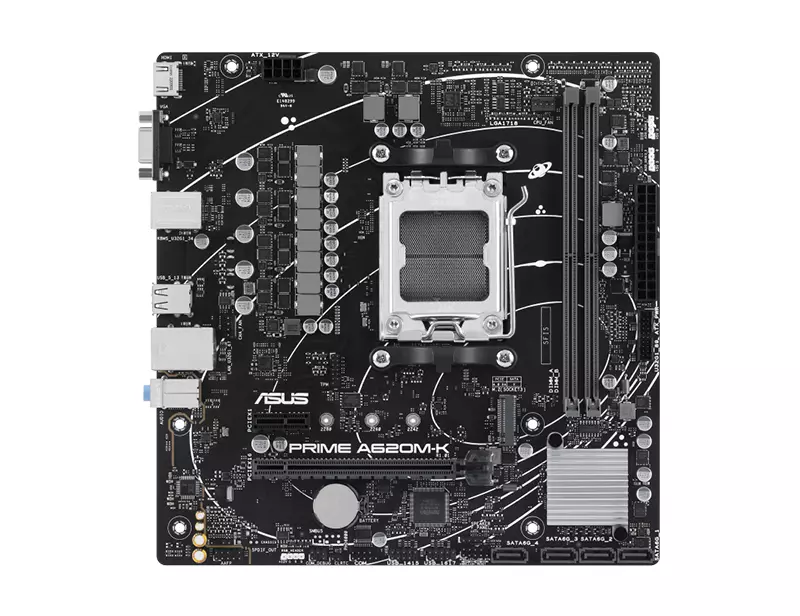

Asus PRIME A620M-K-CSM AM5 mATX Motherboard (AMD)
- PRIME A620M-K-CSM
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
- Graphics Output: 1x HDMI, 1 x VGA
- 1 x Realtek 1Gb Ethernet
Chat Through:
14,500৳ Original price was: 14,500৳ .12,900৳ Current price is: 12,900৳ .
Description
Asus PRIME A620M K CSM AM5 Motherboard Full Specification
Buy the Asus PRIME A620M K CSM AM5 Motherboard from Computer Mania BD at the best price in Bangladesh. Get the latest motherboard with high performance, durability, and a reliable warranty. Explore a wide range of ASUS AMD Motherboards for your PC needs. Order online now for fast delivery and secure shopping across BD!
Basic Information | ||
Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
Chipset | AMD A620 Chipset | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
Expansion Slots | ||
PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 1 x PCIe 3.0 x1 slot | |
M.2 Socket | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
Memory | ||
Type | DDR5 | |
Slots | 2 x DIMM slots | |
Supported Memory | DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration | |
Maximum Memory | Max 96GB | |
Graphics | ||
Graphics | 1 x VGA port 1 x HDMI port * Graphics specifications may vary between CPU types | |
Connector & Ports | ||
HDMI | 1x HDMI 2.1 | |
VGA (s) | 1 x VGA port | |
USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports | |
RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
Audio | 3 x Audio jacks | |
Internal I/O Ports | Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports | |
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
Others | ||
Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – Aluminum heatsink design Aura Sync – Aura RGB header – Addressable Gen 2 headers | |
Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode | |
Warranty Information | ||
Warranty | 3 Years Warranty |
Additional information
Brand |
Asus |
---|---|
CPU Sockets |
AM5 |
FromFactor |
Micro ATX |
RAM Type |
DDR5 |
Special Features |
M.2 |
