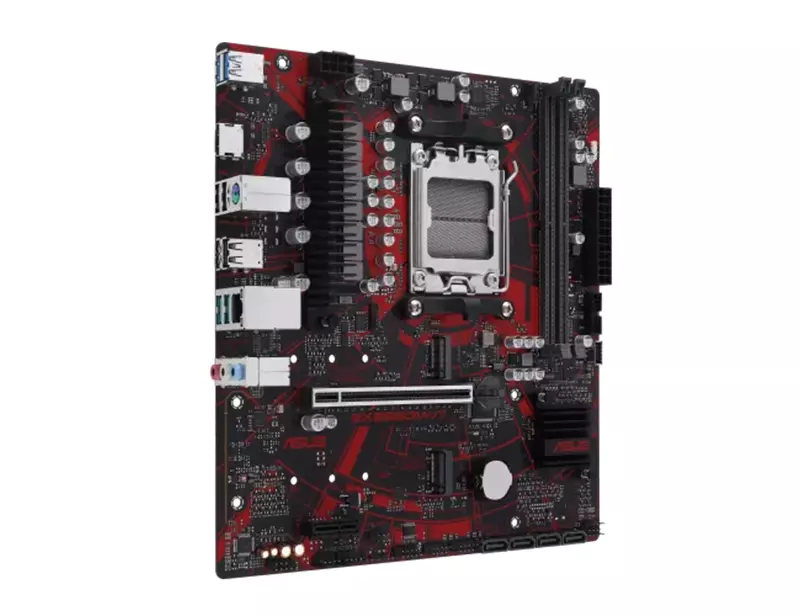

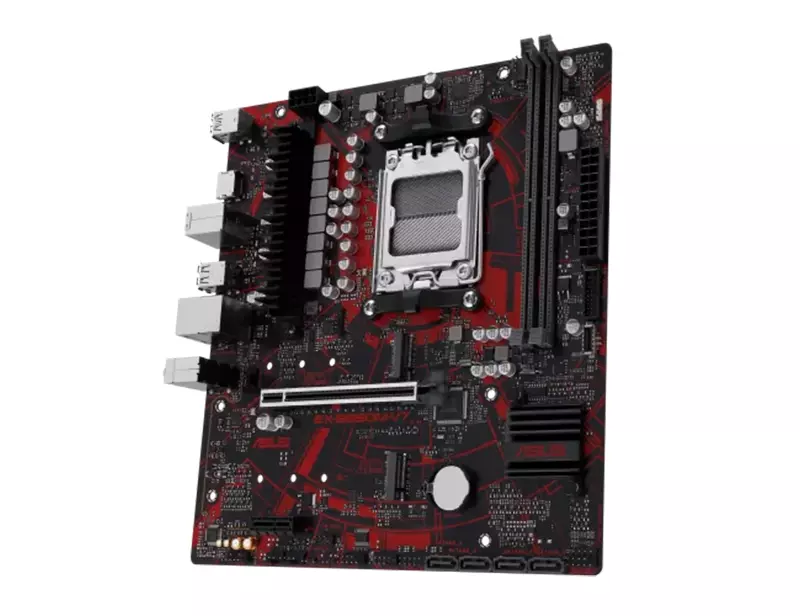

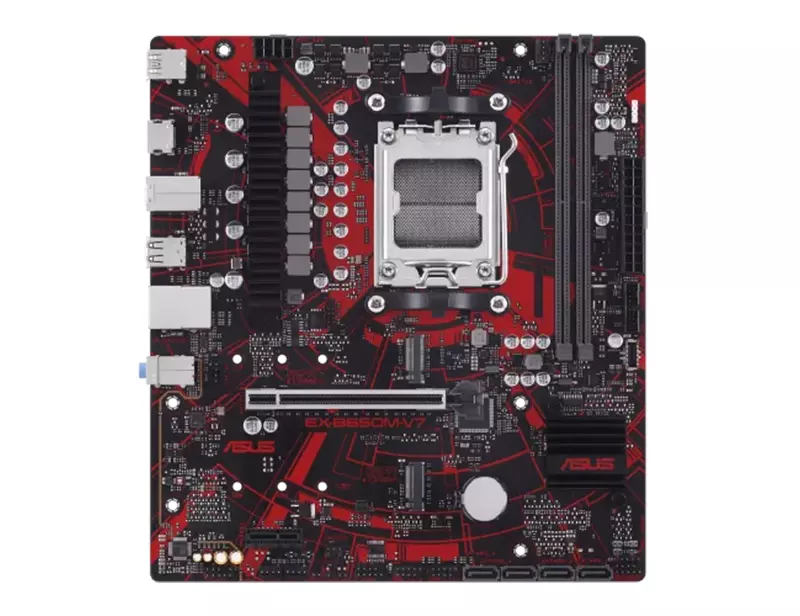

Asus EX-B650M-V7 AM5 micro-ATX Motherboard (AMD)
- EX-B650M-V7
- Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 192GB, 7600+(OC)
- Graphics Output: 1x HDMI
- Realtek 2.5Gb Ethernet
Chat Through:
Original price was: 15,500৳ .14,000৳ Current price is: 14,000৳ .
Description
Asus EX B650M V7 AM5 Motherboard Full Specification
Buy the Asus EX B650M V7 AM5 Motherboard from Computer Mania BD at the best price in Bangladesh. Get the latest micro-ATX motherboard with top performance, durability, and official warranty. This ASUS AMD Motherboard ensures top-notch performance and reliability. Order online from Computer Mania BD for fast delivery and the best deals today!
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers | |
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 1 x PCIe 4.0 x1 slot | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM slots | |
| Supported Memory | 8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II | |
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Audio | 3 x Audio jacks | |

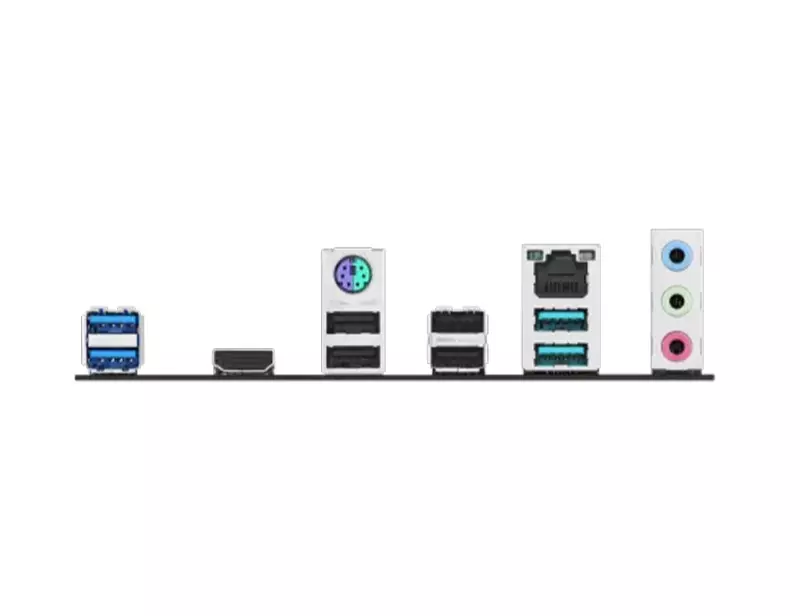

| Internal I/O Ports | Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – VRM heatsink design Non-stop Action – Lightning Boot Non-stop Challenger – ASUS iCafe labs certified Non-stop Durability – Luminous anti-moisture coating – USBGuard | |
| Warranty Information | ||
| Warranty | 3 Years | |
Additional information
| Brand |
Asus |
|---|---|
| CPU Sockets |
AM5 |
| FromFactor |
Micro ATX |
| RAM Type |
DDR5 |
| Special Features |
M.2 |
