Description

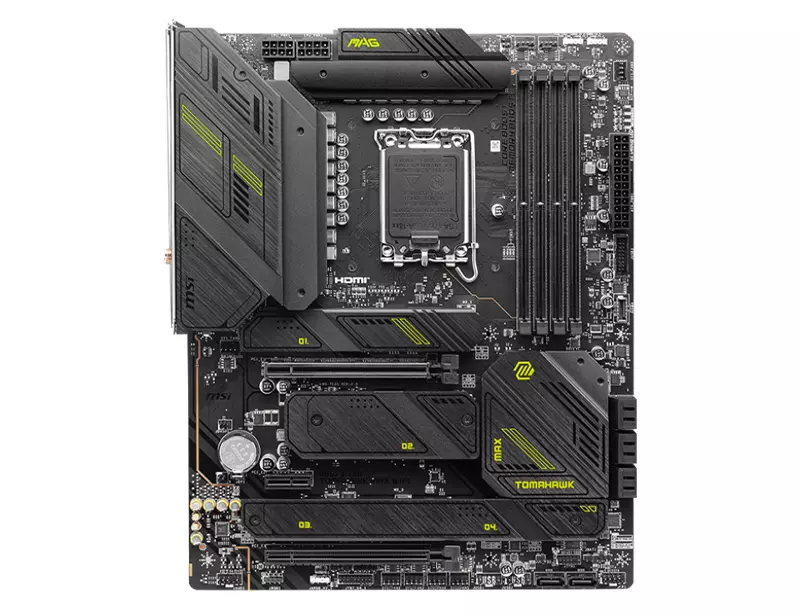

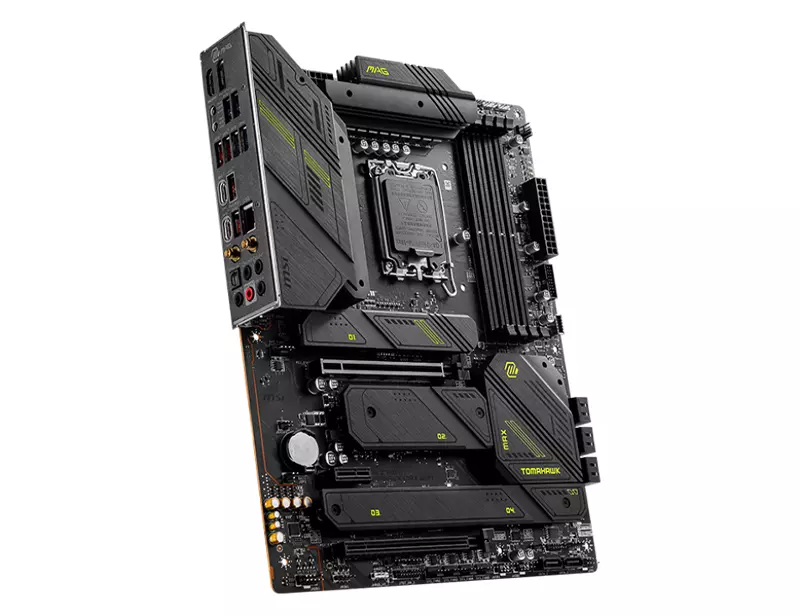

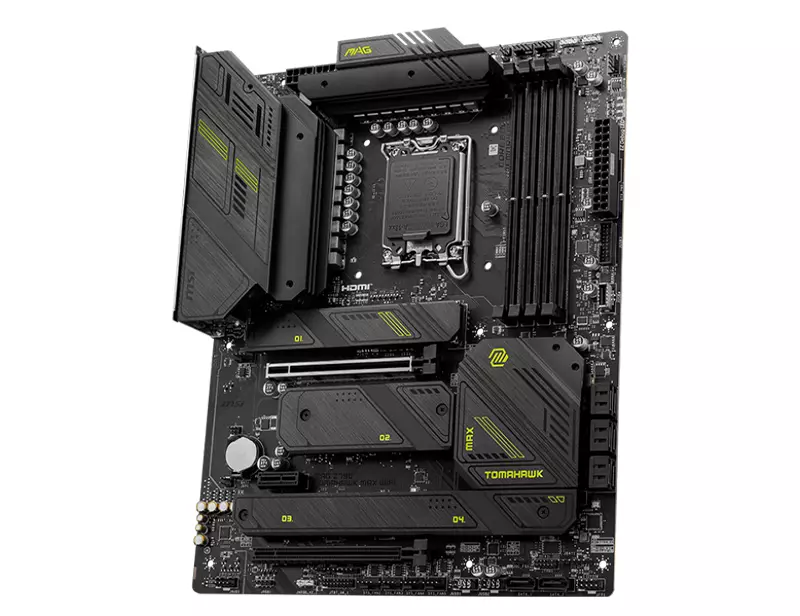

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard Full Specification
Buy MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard from Computer Mania BD at the best price in Bangladesh. Get it now for 41,000 BDT with an official warranty. Order online today! Get the latest MSI Intel Motherboard with the best deals by visiting our website.
| Motherboard Specification | |
| Chipset | Intel Z790 Chipset |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-bit/384 kHz playback on the front panel |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | Maximum Memory Capacity 256GB |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700 |
| Connectors | |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| HDMI | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Display Port | 1x DisplayPort Support DP 1.4, the maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Ports & Slots | |

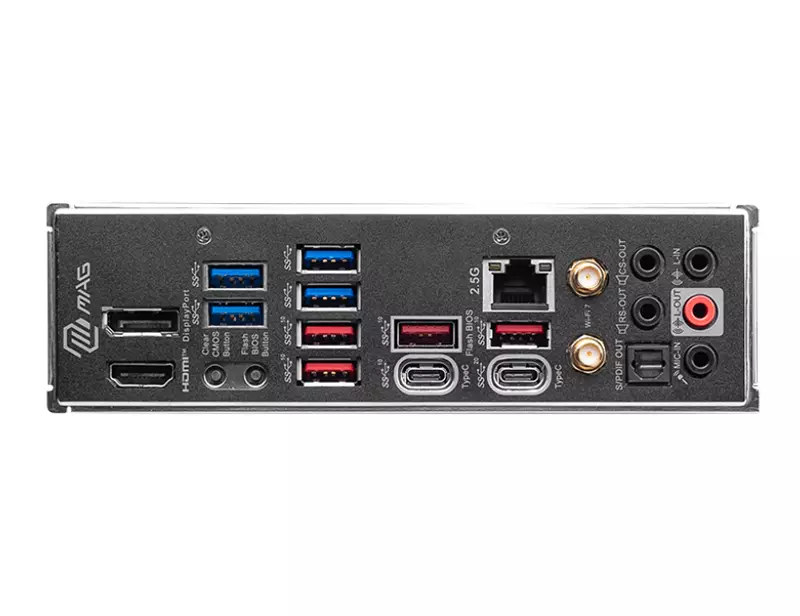

| I/O Port | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Ports | USB 3.2 Ports (Front) 2(Gen 1, Type A) USB 3.2 Ports (Rear) 4(Gen 1, Type A) USB 2.0 Ports (Front) 4 USB 2.0 Ports (Rear) 2 |
| PCI-E | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From the Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Additional information
| Brand |
MSI |
|---|---|
| CPU Sockets |
LGA 1700 |
| FromFactor |
ATX |
| RAM Type |
DDR5 |
| Special Features |
Wi-Fi |
