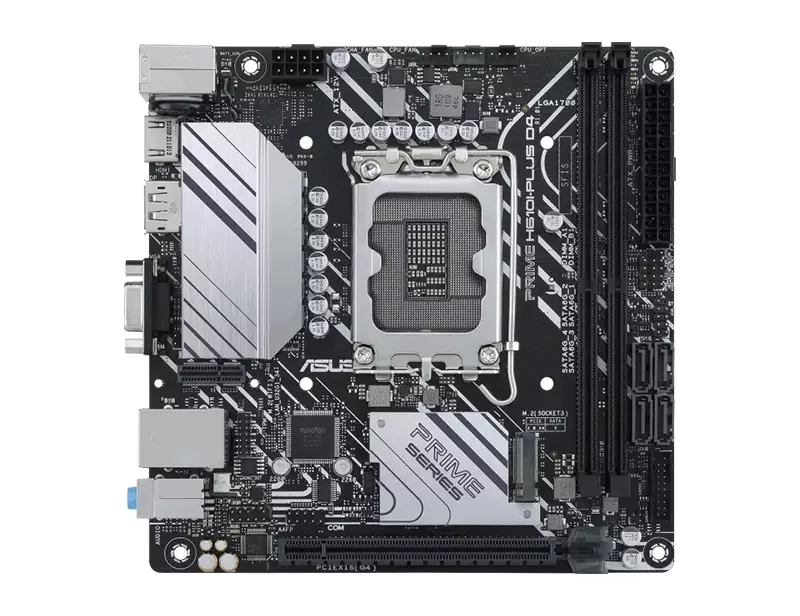

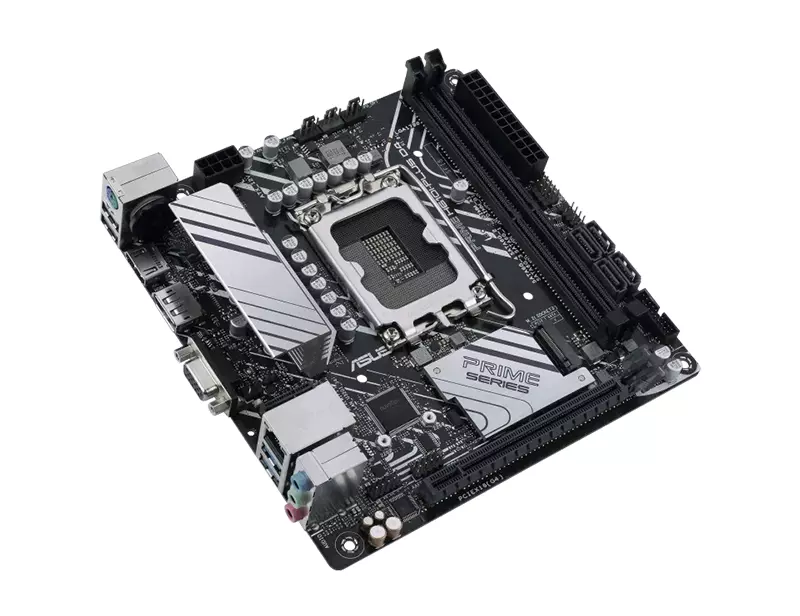

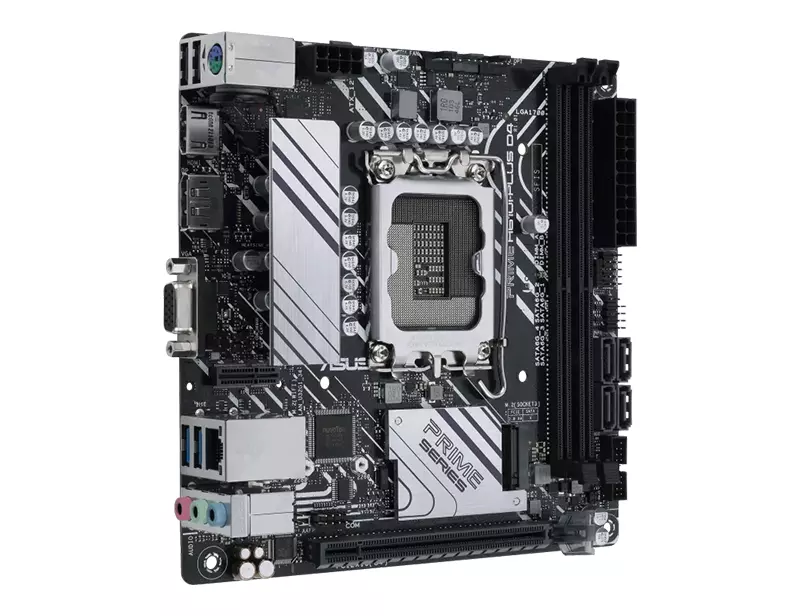

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard (Intel)
- PRIME H610I-PLUS D4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB 3200
- Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub
- 1 x Realtek 1Gb Ethernet
Chat Through:
Original price was: 18,000৳ .16,500৳ Current price is: 16,500৳ .
Description
ASUS PRIME H610I PLUS D4 Motherboard Full Specification
Buy the ASUS PRIME H610I PLUS D4 Motherboard at the best price in BD from Computer Mania BD. Get the latest ASUS PRIME H610I-PLUS D4 Mini-ITX Motherboard with top performance and reliability. Order online for fast delivery and secure shopping. Upgrade your PC with the ASUS Intel Motherboard and get the best deals today!
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-bit/192 kHz playback Audio Features – Audio Shielding – Dedicated audio PCB layers | |
| Expansion Slots | ||
| PCI | Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot | |
| M.2 Socket | 1 x M.2 slots | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DIMM | |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) | |
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| D-Sub (s) | 1 x D-Sub | |

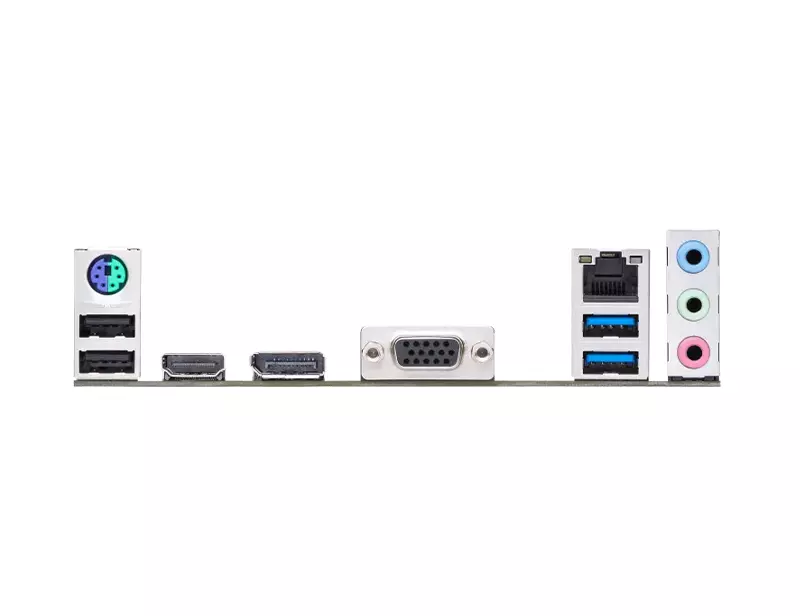

| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *The Wi-Fi module is sold separately. | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports | |
| Audio | 3x Audio jacks | |
| Internal I/O Ports | Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Aluminum heatsink design | |
| Warranty Information | ||
| Warranty | 3 Years warranty | |
Additional information
| Brand |
Asus |
|---|---|
| CPU Sockets |
LGA 1700 |
| FromFactor |
Mini-ITX |
| RAM Type |
DDR4 |
| Special Features |
M.2 |
